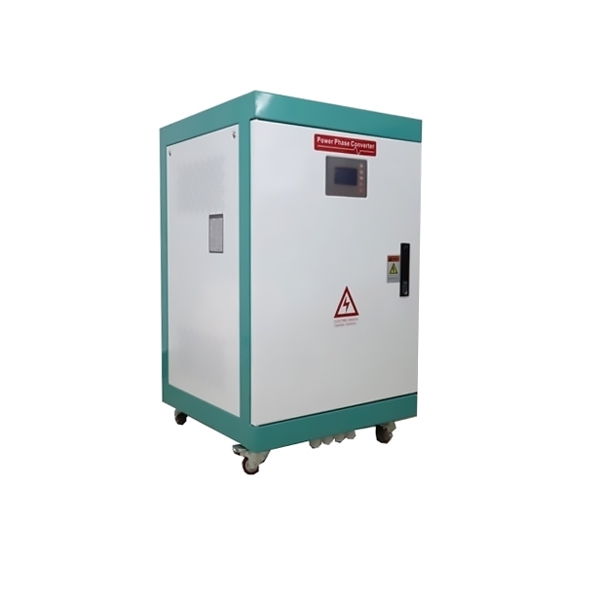

18kW 1 Phase to 3 Phase Converter, 110V to 220V

The 18kW single phase to 3 phase converter efficiently converts single-phase electricity into stable three-phase AC power for industrial applications. It produces pure sine wave output with THD ≤2%, stable voltage, and precise 120° phase angle, ensuring reliable motor performance. Equipped with SVPWM control and high-performance IPM modules, the system achieves conversion efficiency up to 94% with low no-load loss. The converter supports 80–320V AC wide voltage input, customizable output voltage and frequency, and includes LCD monitoring and complete protection functions for safe and stable operation.

Note:

1. When the load is a motor, the phase converter should be more than 5~7 times the motor capacity.
2. When the load is soft start + motor, the phase converter should be more than 3 times the motor capacity.
3. When the load is VFD + motor, the phase converter should be more than 1.5~2 times the motor capacity.

Feature

• Multi-Type Input Power: Compatible with single-phase, two-phase, and three-phase input, providing flexible power solutions where three-phase supply is unavailable.
• Pure Sine Wave Output: Produces clean and stable three-phase AC power with minimal harmonic distortion and stable voltage output.
• Dual Startup Control: Supports step-down startup and variable frequency startup, suitable for inductive loads such as motors and pumps.
• High Conversion Efficiency: Advanced SVPWM algorithm ensures high efficiency up to 94% and reduces no-load power loss.
• Isolation Transformer Design: Built-in low-frequency transformer provides electrical isolation and improves system safety.
• Complete Protection System: Includes overload, short circuit, over-voltage, and overheating protection for long-term reliability.

Details

• Input & Output Terminals: Clearly labeled terminals ensure secure single-phase input and stable three-phase output connections.
• LCD Status Display: Displays voltage, current, frequency, power, and fault codes for real-time system monitoring.
• Circuit Breaker Protection: Built-in breaker protects the converter from overload and short circuit.
• Built-in SPD Protection: Surge protection device safeguards equipment from voltage spikes.
• Convenient Wiring Design: Integrated wiring hole simplifies cable routing and installation.

Dimension

Wiring Instructions

Single Phase

Split Phase
