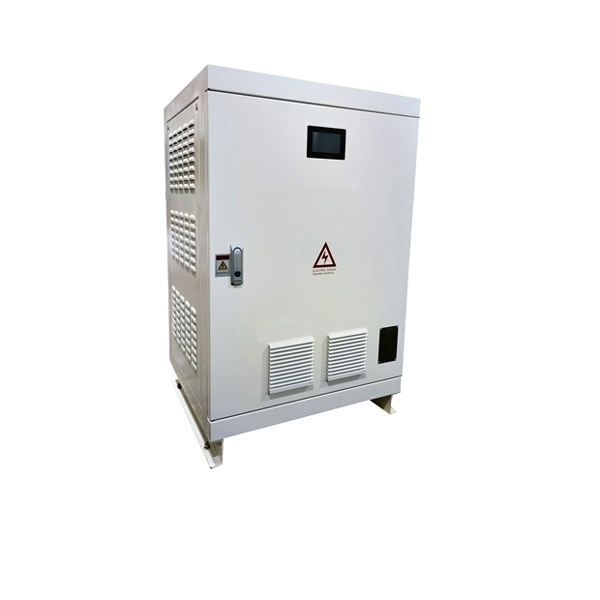

    80kW Single Phase to Three Phase Converter, 480V to 240V

    0 review(s) | Add your review
    SKU: PH-SP3PC-80KW
    $33,985.99
    ● Low frequency transformer isolation design improves stability and electrical safety. ● Output current 86.6 A at 400 V supports heavy-duty industrial loads. ● Fast dynamic response ≤50 ms ensures smooth performance under load changes. ● RS485 communication optional with LCD display for intelligent monitoring.
    *
    *
    *
    *
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Related products

    6kW Single Phase to Three Phase Power Converter

    ● Generates stable 3 phase power from single phase electricity for industrial motors and equipment. ● Produces clean pure sine wave output with high conversion efficiency up to 94%. ● Supports wide voltage input and customizable three phase output voltage. ● Integrated LCD status display and intelligent protection functions.
    $4,659.99

    12kW Single Phase to Three Phase Converter

    ● Efficient 12kW single phase to three phase converter designed for motor-driven equipment. ● Pure sine wave three phase output ensures stable performance for CNC machines and pumps. ● Wide voltage input compatibility allows use in different electrical environments. ● Equipped with LCD monitoring and multiple safety protections.
    $5,999.88

    15kW Single Phase to 3 Phase Converter, 220V to 380V

    ● Phase converter with stable pure sine wave three-phase output with THD ≤2%, frequency stability ≤0.01%, and precise 120°±1° phase angle. ● SVPWM modulation with IPM modules ensures ≥94% efficiency, high instantaneous power, and low no-load loss. ● Wide 80–320V AC input with customizable voltage, frequency, and phase configuration. ● Dual startup modes, LCD monitoring, and protections including overload, short circuit, and overheating.
    $6,869.99

    30kW Single Phase to 3 Phase Converter, 230V to 440V

    ● Stable three-phase pure sine wave output with THD ≤2% and accurate 120° phase angle. ● SVPWM + IPM module design delivers high efficiency up to 94%. ● Wide 80–320V AC input range with customizable voltage and frequency. ● LCD monitoring and multiple safety protections for reliable operation.
    $14,769.99

    60kW Single Phase to Three Phase Converter

    ● 60 kW (80 hp) pure sine wave output with stable 3-phase 400 V and power factor 1 for reliable industrial operation. ● Wide 110–480 V single-phase input and 220-480 V three-phase output ensures strong compatibility. ● Efficiency >93% with THD ≤3% delivers clean and stable power quality. ● 150% overload capacity for 5 seconds with comprehensive protection ensures safe performance.
    $31,242.99

    100kW Single Phase to Three Phase Converter

    ● Pure sine wave output with 50/60 Hz selectable frequency ensures compatibility with various equipment ● Input current 184.5 A at 230 V supports high power conversion efficiency ● Electrical insulation 2000 Vac for 1 minute ensures strong safety performance ● Low noise ≤50 dB with IP20 protection suitable for indoor environments
    $36,153.99
    Overview

    An 80 hp (60 kW) single phase to three phase converter is a low-distortion (≤3% THD) pure sine wave power system with stable output voltage and fast dynamic response ≤50 ms, ensuring clean and interference-free power. It is suitable for sensitive equipment such as CNC systems, laser cutting machines, laboratory instruments, and automated control systems that require high power quality and stability.

    Note:

    1. When the load is a motor, the phase converter should be more than 5~7 times the motor capacity.
    2. When the load is soft start + motor, the phase converter should be more than 3 times the motor capacity.
    3. When the load is VFD + motor, the phase converter should be more than 1.5~2 times the motor capacity.
    1 phase to 3 phase converter feature

    Feature

    • Galvanic Isolation Design: Low-frequency transformer provides full input/output isolation.
    • High Conversion Efficiency: ≥93% efficiency with optimized SVPWM control technology.
    • Low Harmonic Distortion: Output THD ≤3%, ensuring high-quality waveform.
    • Robust Load Compatibility: 1 phase to 3 phase converter suitable for resistive, inductive, and motor loads.
    • Dynamic Stability: ≤5% fluctuation with response time under 50ms.
    • Integrated Protection Functions: Includes overvoltage, undervoltage, overload, and thermal protection.
    • Dual Start Modes: Step-down and VFD start modes available for flexible operation.


    Details

    1. LCD Display: High-precision monitoring of voltage, current, frequency, power, and fault diagnostics.
    2. Built-in SPD: Integrated surge protection enhances system stability and lifespan.
    3. Circuit Breaker: Advanced protection against overload and short circuit conditions.
    4. Wiring Hole: Optimized for efficient cable management and installation.
    5. Input / Output Terminals: Engineered for secure and reliable electrical connections.
    Single phase to three phase converter detail

    Dimension

    60kw single phase to three phase converter size

    Wiring Instructions

    Phase converter single phase wiring instructions

    Single Phase

    Phase converter split phase wiring instructions

    Split Phase

    Specs
    Rated Output Power 80 kW (100 hp)
    Isolation Mode Low frequency transformer
    Input Voltage Optional: 110V/ 120V/ 220V/ 230V/ 240V/ 415V/ 440V/ 480V) single phase 2 wire
    Output Voltage Optional: 220V/ 380V/ 400V/ 415V/ 440V/ 480V) 3 phase 4 wire+PE
    Input Current 246A at 230V (Input Current=Power/Input Voltage/1.414)
    Output Waveform Pure sine wave
    Output Current 115.5A at 400V
    Frequnecy 50Hz or 60Hz
    Power Factor 1
    Overload Ability 150%, 5 Seconds
    Efficiency >93%
    Waveform Distortion Rated (THD) ≤3%（Linear load）
    Dynamic Respond (0 to 100% load) 5%, ≤50ms
    Display LCD
    Running Mode Working continously
    Electrical Inslation Properties 2000Vac, 1 Minute
    Communication Interface RS485 (Optional)
    Protection Input under voltage, overvoltage, output over-current, short circuit, overheating etc.
    Cooling Method Forced air cooling
    Short Circuit Protection No automatic recovery, need to restart the machine
    Noise (1 meter) ≤50dB
    Degree of Protection IP20 (indoor)
    Working Altitude ≤2000m
    Woorking Temperature -25~+55°C
    Relative Humidty 0~90%, Non condensing
    Dimension 750*750*1480mm
    Weight 590kg
    Application
    HVAC systems phase converter

    HVAC Systems

    Grinders

    Grinders

    Temporary power scenarios

    Temporary Power Scenarios

    Agricultural equipment

    Agricultural Equipment

    FAQ

    Q1: Is a single phase to three phase converter better than utility three phase power?

    Utility three phase power is usually the ideal source where available, but a single phase to three phase converter is an excellent alternative when utility three phase service is not installed or is too costly to add. It provides flexibility, lower installation cost, and wider equipment compatibility for many users.

    Q2: Can I use a single phase to three phase converter for CNC machines?

    Yes, a single phase to three phase converter is commonly used for CNC machines, machine tools, and workshop equipment. It helps users operate professional three phase machinery in small factories, garages, and commercial spaces where only single phase power is available.
