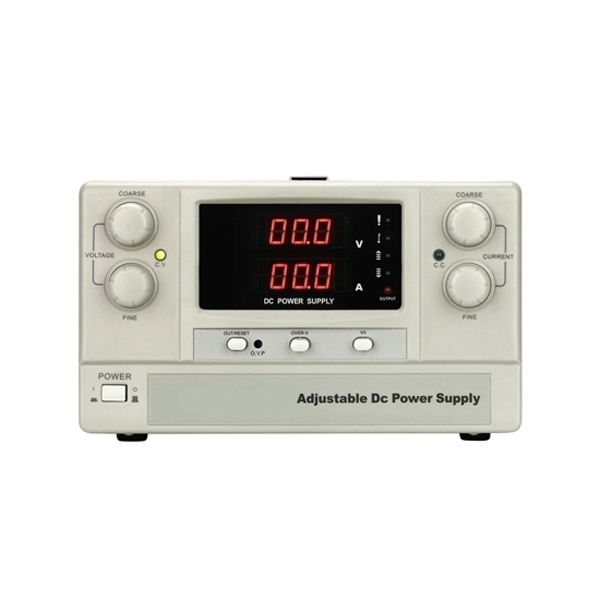

0-100V 30A/50A Variable DC Power Supply

SKU: PH-VDCPS-100V30

$1,233.19

● 0-100V 30A/50A regulated DC power supply provides stable and precise output with low ripple. ● Supports preset and display of voltage, current and over-voltage protection values. ● Expandable with remote control and pulse aging, suitable for industrial and testing applications.

Output Current Range *
Input Voltage *

Qty:

🚚 Free shipping

⏱️ Delivery: 6-12 days

🔙 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

0 to 100 volt variable high voltage power supply provides 3000W/5000W output power and up to 30 amp/50 amp current capacity for industrial testing, laboratory use, and equipment verification, available with optional single-phase 110V/220V input, overvoltage and overload protection.

Feature

Constant Voltage & Current Mode: Voltage and current values are continuously adjustable from 0-100 volt and 30 amp/50 amp.
PWM Switch Control: Adopts PWM technology, offering lightweight, high efficiency, high precision and low ripple.
High Adaptability: PowerHome variable DC power supply is suitable for resistive, capacitive and inductive loads with excellent performance.

Details

Convenient Operation: Automatic constant voltage/current switching, soft-start delay to avoid voltage overshoot, preset voltage/current output and contactless switch output.
Overvoltage Protection: 0-120% rated voltage adjustable protection value; trips when output voltage exceeds the set value.
Short Circuit Protection: Adjustable DC power supply supports prolonged short circuits or short-circuit startup under any working condition.

100V 30A/50A Adjustable DC Power Supply Panel

Variable DC power supply panel details

Specs

Model	PH-JK10030K	PH-JK10050K
Input Voltage	Single Phase 110V or 220V AC (+/- 10%)
Output Voltage Range	0-100V
Output Current Range	0-30A	0-50A
Output Power	3000W	5000W
Frequency	50Hz/60Hz
Adjustable Mode	Pulse Width Modulation (PWM) Type
Transistor Connection Method	Full Bridge
Output Type	Dual
Display	3 digit
Display Accuracy	Output Voltage ±0.5%, Output Current ±0.5%
Efficiency	>86%
Load Regulation (CV)	Stable Voltage ≤0.5%, Constant Current ≤0.5%
Line Regulation (CV)	Stable Voltage ≤0.5%
Ripple Voltage	≤3%
Insulation Resistance	Input-Output: ≥20MΩ
	Input-Chassis: ≥20MΩ
	Output-Chassis:≥80MΩ
Dielectric Strength	Input-Output: AC 1500V, 10mA, 1 minute
	Input-Chassis: AC 1500V, 10mA, 1 minute
	Output-Chassis: AC 1500V, 10mA, 1 minute
Protection	Over Load and Over Voltage Protection
Current Imbalance	≤5% + 0.5A
Operating Ambient	-10℃ to + 45℃/ 85%RH
Storage Ambient	-20℃ to + 70℃/ 80%RH
Overheat Protection Ambient Threshold	70℃ to 80℃
Mean Time Between Failures	≥50000h
Cooling Duct	Internal Cooling Air Duct Forward and Exit
Certification	CE
Warranty	12 Months
Size	303 (L) x 255 (W) x 155 (H) mm
Weight	13kg	13kg

Application

Audio Equipment Testing

Smart Device R&D Testing

Medical Instrument Debugging

Security Monitoring Equipment Testing

FAQ

Q1: What research and development applications require a 0–100V high-voltage DC power supply?

The 0–100V high-voltage variable DC power supply is commonly used in power electronics R&D, component breakdown voltage testing, high-power communication equipment, specialized industrial machinery, and high-voltage load aging tests. It provides a higher output voltage range for testing devices that require medium-to-high DC voltage for proper operation.

Q2: Why are overvoltage and overcurrent protection essential for high-voltage models?

High-voltage output increases the risk of equipment damage and personal safety hazards if parameters exceed limits. Built-in overvoltage and overcurrent protection automatically cut off or limit output when abnormal conditions occur, protecting both the power supply and the connected devices from irreversible damage.
