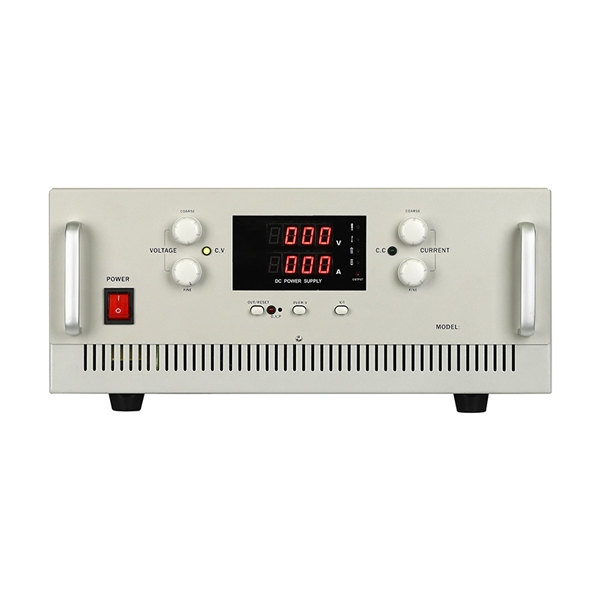

    0-30V 200A Variable DC Power Supply

    0 review(s) | Add your review
    SKU: PH-VDCPS-30V200
    $2,317.19
    ● Fast dynamic response with soft-start function reduces inrush impact and improves system stability. ● Strong adaptability to resistive, capacitive and inductive loads ensures stable industrial performance. ● Variable DC power supply can be continuously adjusted within the range of 0 to 30 volt output voltage and 0 to 200 amp output current.
    *
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Related products

    0-60V 30A/50A/80A Variable DC Power Supply

    ● Digital adjustable DC power supply features continuously adjustable voltage (0–60V) and current (0-30A/50A/80A) with stable output. ● Equipped with soft start and complete protection, suitable for resistive, capacitive and inductive loads. ● Supports remote control extension, easy operation and reliable long-time full-load performance.
    $699.39

    0-100V 30A/50A Variable DC Power Supply

    ● 0-100V 30A/50A regulated DC power supply provides stable and precise output with low ripple. ● Supports preset and display of voltage, current and over-voltage protection values. ● Expandable with remote control and pulse aging, suitable for industrial and testing applications.
    $1,233.19

    0-120V 30A Variable DC Power Supply

    ● 0 to 120V 30A adjustable regulated DC power supply with digital control and switching design, ensuring high reliability. ● Automatic CV/CC switching with smooth output, complete protection, and sufficient power margin. ● Stable under long-time full load, ideal for industrial control, high-voltage test and aging.
    $1,301.19

    0-15V 500A Variable DC Power Supply

    ● 500A high current & 0 to 15V low voltage output design for heavy-duty electroplating and motor load testing applications. ● Advanced PWM switching technology ensures high efficiency, low heat generation and compact structure. ● Built-in CV/CC automatic switching with OVP, OTP and short-circuit protection, etc.
    $2,967.99

    0-60V 100A/150A Variable DC Power Supply

    ● Output voltage and current can be continuously adjusted within the range of 0 to 60 volt and 0 to 100A/150A. ● Provides automatic switching between regulated CV and regulated CC operating modes. ● Used for factories, schools, research institutes, and laboratories.
    $2,472.89

    0-100V 80A Variable DC Power Supply

    ● 0 to 100V 80A adjustable high voltage power supply designed for electronic component and display system testing. ● Low ripple PWM switching structure delivers fast response and improved output precision. ● Features a full protection system, including over-voltage, over-current, over-temperature, short-circuit, overload, and reverse polarity protection.
    $2,832.89
    Overview

    6000W digital power supply is a variable DC regulated power supply with continuously adjustable 0-30V output voltage and 0-200A current, and a 3-digit LED display, widely used in industrial control, electronic power, electroplating, and communication equipment testing.

    Variable DC power supply dimension

    Feature

    • Advanced PWM Control: PWM switching design with compact size, high efficiency, low ripple, and wide input voltage range.
    • CV/CC Auto Switching: Automatic constant voltage and constant current modes, ensuring precise and stable regulation.
    • Full Protection System: Built-in overvoltage, overheating, and short-circuit protection with soft-start function.


    Details

    1. Adjustable Output: Voltage and current adjustable from 0 to 30 volt/ 0 to 200 amp, preset and monitoring supported.
    2. Smart Operation Functions: Voltage/current preset output with non-contact switching control for simple and stable operation.
    3. Load Adaptability: PowerHome 30V 200A adjustable DC power supply is suitable for resistive, capacitive, and inductive loads, with stable and consistent performance under all conditions.
    Variable DC power supply details

    30V 200A Adjustable DC Power Supply Panel

    Variable DC power supply panel details

    Specs
    Model PH-JK30200K
    Input Voltage Single Phase 110V or 220V AC (+/- 10%)
    Output Voltage Range 0-30V
    Output Current Range 0-200A
    Output Power 6000W
    Frequency 50Hz/60Hz
    Adjustable Mode Pulse Width Modulation (PWM) Type
    Transistor Connection Method Full Bridge
    Output Type Dual
    Display 3 digit
    Display Accuracy Output Voltage ±0.5%, Output Current ±0.5%
    Efficiency >86%
    Load Regulation (CV) Stable Voltage ≤0.5%, Constant Current ≤0.5%
    Line Regulation (CV) Stable Voltage ≤0.5%
    Ripple Voltage ≤1%
    Insulation Resistance Input-Output: ≥20MΩ
    Input-Chassis: ≥20MΩ
    Output-Chassis:≥80MΩ
    Dielectric Strength Input-Output: AC1500V, 10mA, 1 minute
    Input-Chassis: AC1500V, 10mA, 1 minute
    Output-Chassis: AC1500V, 10mA, 1 minute
    Protection Over Load and Over Voltage Protection
    Current Imbalance ≤5% + 0.5A
    Operating Ambient -10℃ to + 45℃/ 85%RH
    Storage Ambient -20℃ to + 70℃/ 80%RH
    Overheat Protection Ambient Threshold 70℃ to 80℃
    Mean Time Between Failures ≥50000h
    Cooling Duct Internal Cooling Air Duct Forward and Exit
    Certification CE
    Warranty 12 Months
    Size 430 (L) x 450 (W) x 180 (H) mm
    Weight 26kg
    Application
    Adjustable DC power supply for electronic component testing

    Electronic Component Testing

    Adjustable DC power supply for LED lamp aging testing

    LED Lamp Aging Testing

    Adjustable DC power supply for small dc motor testing

    Small DC Motor Testing

    Adjustable DC power supply for teaching & scientific research experiment

    Teaching & Scientific Research Experiment

    FAQ

    Q1: Can a 0–30V 200A variable DC power supply be used for LED testing and aging?

    Yes, it is widely used for LED driver testing, aging tests, and electronic repair applications because it provides stable constant voltage and constant current output for long-duration industrial and laboratory use.

    Q2: How stable is the output under different load conditions?

    It maintains high stability under resistive, inductive, and capacitive loads, while fast dynamic response ensures consistent output performance even during sudden load changes or switching conditions.
