    Picture of 0-120V 30A Variable DC Power Supply
    Picture of 0-120V 30A Variable DC Power Supply
    Picture of 0-120V 30A Variable DC Power Supply

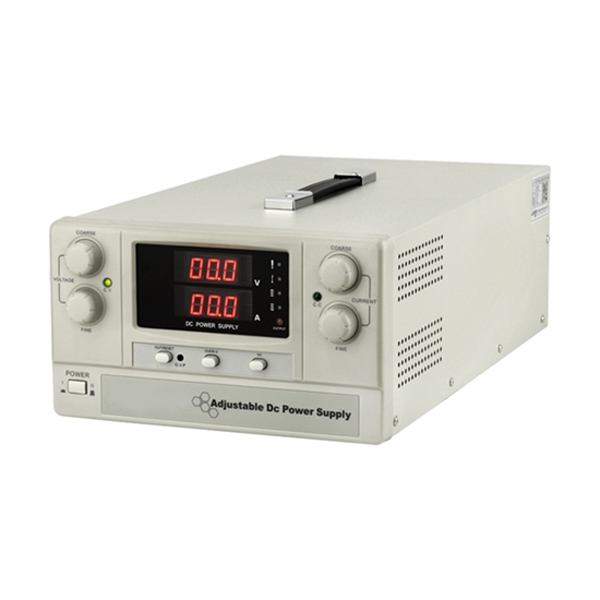

    0-120V 30A Variable DC Power Supply

    0 review(s) | Add your review
    SKU: PH-VDCPS-120V30
    $1,301.19
    ● 0 to 120V 30A adjustable regulated DC power supply with digital control and switching design, ensuring high reliability. ● Automatic CV/CC switching with smooth output, complete protection, and sufficient power margin. ● Stable under long-time full load, ideal for industrial control, high-voltage test and aging.
    *
    šŸšš Free shipping
    ā±ļø Delivery: 6-12 days
    šŸ”™ 30-day Returns
    Related products

    0-60V 30A/50A/80A Variable DC Power Supply

    ● Digital adjustable DC power supply features continuously adjustable voltage (0–60V) and current (0-30A/50A/80A) with stable output. ● Equipped with soft start and complete protection, suitable for resistive, capacitive and inductive loads. ● Supports remote control extension, easy operation and reliable long-time full-load performance.
    $699.39

    0-100V 30A/50A Variable DC Power Supply

    ● 0-100V 30A/50A regulated DC power supply provides stable and precise output with low ripple. ● Supports preset and display of voltage, current and over-voltage protection values. ● Expandable with remote control and pulse aging, suitable for industrial and testing applications.
    $1,233.19

    0-15V 500A Variable DC Power Supply

    ● 500A high current & 0 to 15V low voltage output design for heavy-duty electroplating and motor load testing applications. ● Advanced PWM switching technology ensures high efficiency, low heat generation and compact structure. ● Built-in CV/CC automatic switching with OVP, OTP and short-circuit protection, etc.
    $2,967.99

    0-30V 200A Variable DC Power Supply

    ● Fast dynamic response with soft-start function reduces inrush impact and improves system stability. ● Strong adaptability to resistive, capacitive and inductive loads ensures stable industrial performance. ● Variable DC power supply can be continuously adjusted within the range of 0 to 30 volt output voltage and 0 to 200 amp output current.
    $2,317.19

    0-60V 100A/150A Variable DC Power Supply

    ● Output voltage and current can be continuously adjusted within the range of 0 to 60 volt and 0 to 100A/150A. ● Provides automatic switching between regulated CV and regulated CC operating modes. ● Used for factories, schools, research institutes, and laboratories.
    $2,472.89

    0-100V 80A Variable DC Power Supply

    ● 0 to 100V 80A adjustable high voltage power supply designed for electronic component and display system testing. ● Low ripple PWM switching structure delivers fast response and improved output precision. ● Features a full protection system, including over-voltage, over-current, over-temperature, short-circuit, overload, and reverse polarity protection.
    $2,832.89
    Overview

    High voltage 0 to 120 volt variable DC power supply is a regulated DC power supply, comes with 3600W DC output power, 0 to 30 amp output current, selectable single phase 110V/220V AC input and 3 digit LED display. Adjustable DC power supply uses a digital control system to easily and accurately set the required voltage and current values.

    Variable DC power supply dimension

    Feature

    • Constant Voltage & Current Mode: Voltage and current values are continuously adjustable from 0-120 volt and 30A.
    • PWM Switch Control: Adopts PWM technology, offering lightweight, high efficiency, high precision and low ripple.
    • High Adaptability: PowerHome adjustable regulated DC power supply is suitable for resistive, capacitive and inductive loads with excellent performance.


    Details

    1. Convenient Operation: Automatic constant voltage/current switching, soft-start delay to avoid voltage overshoot, preset voltage/current output and contactless switch output.
    2. Overvoltage Protection: 0-120% rated voltage adjustable protection value; trips when output voltage exceeds the set value.
    3. Short Circuit Protection: Adjustable stabilized DC power supply supports prolonged short circuits or short-circuit startup under any working condition.
    Variable DC power supply details

    120V 30A Adjustable DC Power Supply Panel

    Variable DC power supply panel details

    Specs
    Model PH-JK12030K
    Input Voltage Single Phase 110V or 220V AC (+/- 10%)
    Output Voltage Range 0-120V
    Output Current Range 0-30A
    Output Power 3600W
    Frequency 50Hz/60Hz
    Adjustable Mode Pulse Width Modulation (PWM) Type
    Transistor Connection Method Full Bridge
    Output Type Dual
    Display 3 digit
    Display Accuracy Output Voltage Ā±0.5%, Output Current Ā±0.5%
    Efficiency >86%
    Load Regulation (CV) Stable Voltage ā‰¤1.5%, Constant Current ā‰¤2.0%
    Line Regulation (CV) Stable Voltage ā‰¤0.5%
    Ripple Voltage ā‰¤3%
    Insulation Resistance Input-Output: ā‰„20MĪ©
    Input-Chassis: ā‰„20MĪ©
    Output-Chassis:ā‰„80MĪ©
    Dielectric Strength Input-Output: AC 1500V, 10mA, 1 minute
    Input-Chassis: AC 1500V, 10mA, 1 minute
    Output-Chassis: AC 1500V, 10mA, 1 minute
    Protection Over Load and Over Voltage Protection
    Current Imbalance ā‰¤5% + 0.5A
    Operating Ambient -10ā„ƒ to + 45ā„ƒ/ 85%RH
    Storage Ambient -10ā„ƒ to + 80ā„ƒ/ 80%RH
    Overheat Protection Ambient Threshold 70ā„ƒ to 80ā„ƒ
    Mean Time Between Failures ā‰„50000h
    Cooling Duct Internal Cooling Air Duct Forward and Exit
    Certification CE
    Warranty 12 Months
    Size 303 (L) x 255 (W) x 155 (H) mm
    Weight 8kg
    Application
    Adjustable DC power supply for audio equipment testing

    Audio Equipment Testing

    Adjustable DC power supply for smart device r&d testing

    Smart Device R&D Testing

    Adjustable DC power supply for medical instrument debugging

    Medical Instrument Debugging

    Adjustable DC power supply for security monitoring equipment testing

    Security Monitoring Equipment Testing

    FAQ

    Q1: What are the main advantages of the 0ā€“120V high-voltage variable DC power supply?

    With a maximum output of 120V, this supply is suitable for higher-voltage test and power supply applications, including high-voltage electronic module testing, specialized motor drives, industrial equipment requiring elevated DC voltage, and R&D of medium-voltage power systems. It offers stable output and precise adjustment for demanding high-voltage applications.

    Q2: What installation and operational rules must be followed for a 120V output?

    The 120V output requires strict adherence to electrical safety standards. All connections must be insulated, and the equipment must be properly grounded. The working area should be kept dry and clear of conductive materials. Users should avoid open connections and regularly check for loose terminals to prevent arcing or electric shock.
