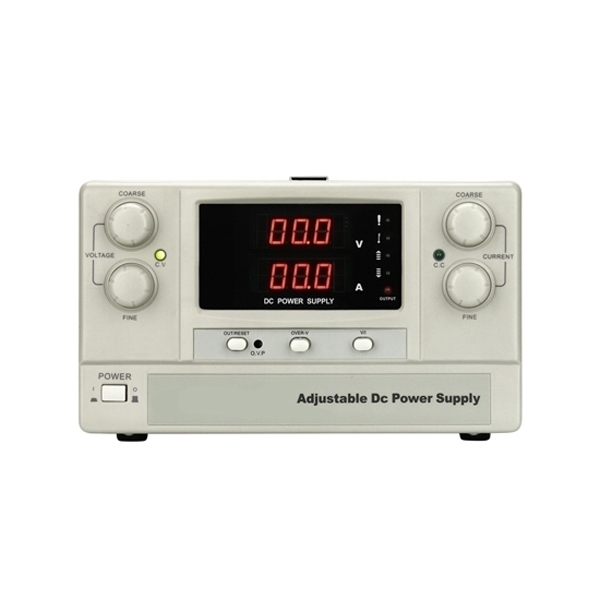

0-60V 30A/50A/80A Variable DC Power Supply

SKU: PH-VDCPS-60V30

$699.39

● Digital adjustable DC power supply features continuously adjustable voltage (0–60V) and current (0-30A/50A/80A) with stable output. ● Equipped with soft start and complete protection, suitable for resistive, capacitive and inductive loads. ● Supports remote control extension, easy operation and reliable long-time full-load performance.

Output Current Range *
Input Voltage *
Input Voltage *
Input Voltage *

Qty:

🚚 Free shipping

⏱️ Delivery: 6-12 days

🔙 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Variable DC power supply is a digital regulated DC power supply, provides 0–60 volt voltage adjustment and up to 30A/50A/80A current output and works with single phase 110V or 220V AC input voltage, designed for battery testing, lab use, and industrial power supply needs.

Feature

Constant Voltage & Current Mode: Voltage and current values are continuously adjustable from 0-60V and 30/50/80 amp.
PWM Switch Control: Adopts PWM technology, offering lightweight, high efficiency, high precision and low ripple.
High Adaptability: PowerHome variable current and voltage power supply is suitable for resistive, capacitive and inductive loads with excellent performance.

Details

Convenient Operation: Automatic constant voltage/current switching, soft-start delay to avoid voltage overshoot, preset voltage/current output and contactless switch output.
Overvoltage Protection: 0-120% rated voltage adjustable protection value; trips when output voltage exceeds the set value.
Short Circuit Protection: Digital adjustable DC power supply supports prolonged short circuits or short-circuit startup under any working condition.

60V 30A/50A/80A Adjustable DC Power Supply Panel

Variable DC power supply panel details

Specs

Model	PH-JK6030K	PH-JK6050K	PH-JK6080K
Input Voltage	Single Phase 110V or 220V AC (+/- 10%)
Output Voltage Range	0-60V
Output Current Range	0-30A	0-50A	0-80A
Output Power	1800W	3000W	4800W
Frequency	50Hz/60Hz
Adjustable Mode	Pulse Width Modulation (PWM) Type
Transistor Connection Method	Full Bridge
Output Type	Dual
Display	3 digit
Display Accuracy	Output Voltage ±0.5%, Output Current ±0.5%
Efficiency	>86%
Load Regulation (CV)	Stable Voltage ≤0.5%, Constant Current ≤0.5%
Line Regulation (CV)	Stable Voltage ≤0.5%
Ripple Voltage	≤3%
Insulation Resistance	Input-Output: ≥20MΩ
	Input-Chassis: ≥20MΩ
	Output-Chassis:≥80MΩ
Dielectric Strength	Input-Output: AC 1500V, 10mA, 1 minute
	Input-Chassis: AC 1500V, 10mA, 1 minute
	Output-Chassis: AC 1500V, 10mA, 1 minute
Protection	Over Load and Over Voltage Protection
Current Imbalance	≤5% + 0.5A
Operating Ambient	-10℃ to + 45℃/ 85%RH
Storage Ambient	-20℃ to + 70℃/ 80%RH
Overheat Protection Ambient Threshold	70℃ to 80℃
Mean Time Between Failures	≥50000h
Cooling Duct	Internal Cooling Air Duct Forward and Exit
Certification	CE
Warranty	12 Months
Size	303 (L) x 255 (W) x 155 (H) mm		303 (L) x 255 (W) x 155 (H) mm (220V)/570 (L) x 520 (W) x 270 (H) mm (110V)
Weight	13g	13kg	13kg (220V)/24kg (110V)

Application

Audio Equipment Testing

Smart Device R&D Testing

Medical Instrument Debugging

Security Monitoring Equipment Testing

FAQ

Q1: What types of loads are suitable for the 0–60V medium-voltage power supply?

This 60V variable DC power supply is suitable for medium-voltage and medium-to-high power applications such as high-power LED strip testing, motor driver power supplies, electronic load simulation, power adapter aging, and small-scale industrial equipment that requires voltage above 30V but below 100V. It balances output voltage range and current capacity for versatile testing and power supply applications.

Q2: What safety measures are necessary when using the 60V output?

Although 60V is not a high-voltage hazard to the same degree as mains voltage, it can still cause dangerous electric shocks under high-current conditions. Users should insulate all terminals, avoid touching live connections, and ensure proper grounding. Overcurrent and overvoltage protection functions should be enabled to prevent damage to the load or the power supply in case of abnormal conditions.
