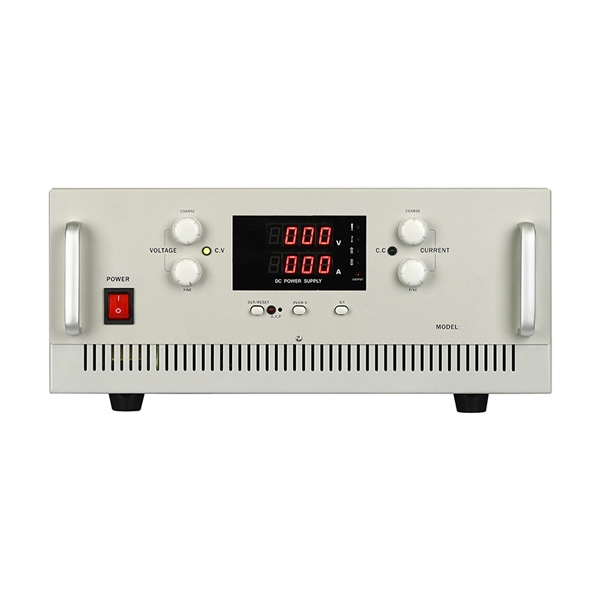

0-60V 100A/150A Variable DC Power Supply

SKU: PH-VDCPS-60V100

$2,472.89

● Output voltage and current can be continuously adjusted within the range of 0 to 60 volt and 0 to 100A/150A. ● Provides automatic switching between regulated CV and regulated CC operating modes. ● Used for factories, schools, research institutes, and laboratories.

Output Current Range *
Input Voltage *

Qty:

🚚 Free shipping

⏱️ Delivery: 6-12 days

🔙 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Variable DC power supply is designed with adjustable 0-60V output voltage, 0-100 amp/150 amp output current, single phase 110V or 220V±10% AC input and 6000W / 9000W high power output. Equipped with digital control, this regulated DC power supply allows users to set the required voltage and current values precisely.

Feature

Advanced PWM Control: PWM switching design with compact size, high efficiency, low ripple, and wide input voltage range.
CV/CC Auto Switching: Automatic constant voltage and constant current modes, ensuring precise and stable regulation.
Full Protection System: Built-in overvoltage, overheating, and short-circuit protection with soft-start function.

Details

Adjustable Output: Voltage and current adjustable from 0 to 60V/ 0 to 100A/150A, preset and monitoring supported.
Smart Operation Functions: Voltage/current preset output with non-contact switching control for simple and stable operation.
Load Adaptability: PowerHome 60V 100 amp/150 amp regulated DC power supply is suitable for resistive, capacitive, and inductive loads, with stable and consistent performance under all conditions.

60V 100A/150A Adjustable DC Power Supply Panel

Variable DC power supply panel details

Specs

Model	PH-PH60100K	PH-JK60150K
Input Voltage	Single Phase 110V or 220V AC (+/- 10%)
Output Voltage Range	0-60V
Output Current Range	0-100A	0-150A
Output Power	6000W	9000W
Frequency	50Hz/60Hz
Adjustable Mode	Pulse Width Modulation (PWM) Type
Transistor Connection Method	Full Bridge
Output Type	Dual
Display	3 digit
Display Accuracy	Output Voltage ±0.5%, Output Current ±0.5%
Efficiency	>86%
Load Regulation (CV)	Stable Voltage ≤0.5%, Constant Current ≤0.5%
Line Regulation (CV)	Stable Voltage ≤0.5%
Ripple Voltage	≤3%
Insulation Resistance	Input-Output: ≥20MΩ
	Input-Chassis: ≥20MΩ
	Output-Chassis:≥80MΩ
Dielectric Strength	Input-Output: AC 1500V, 10mA, 1 minute
	Input-Chassis: AC 1500V, 10mA, 1 minute
	Output-Chassis: AC 1500V, 10mA, 1 minute
Protection	Over Load and Over Voltage Protection
Current Imbalance	≤5% + 0.5A
Operating Ambient	-10℃ to + 45℃/ 85%RH
Storage Ambient	-10℃ to + 80℃/ 80%RH
Overheat Protection Ambient Threshold	70℃ to 80℃
Mean Time Between Failures	≥50000h
Cooling Duct	Internal Cooling Air Duct Forward and Exit
Certification	CE
Warranty	12 Months
Size	430 (L) x 455 (W) x 185 (H) mm
Weight	45kg	45kg

Application

Electronic Component Testing

LED Lamp Aging Testing

Small DC Motor Testing

Teaching & Scientific Research Experiment

FAQ

Q1: What is the difference between 100A and 150A variable DC power supply models?

The difference lies in the maximum output current capacity, allowing users to select based on load power requirements, while both models maintain identical voltage regulation precision and CV/CC control performance.

Q2: Does this variable DC power supply support automatic CV and CC mode switching?

Yes, it features automatic constant voltage and constant current mode switching, which helps protect both the power supply and the connected load during varying electrical conditions.
