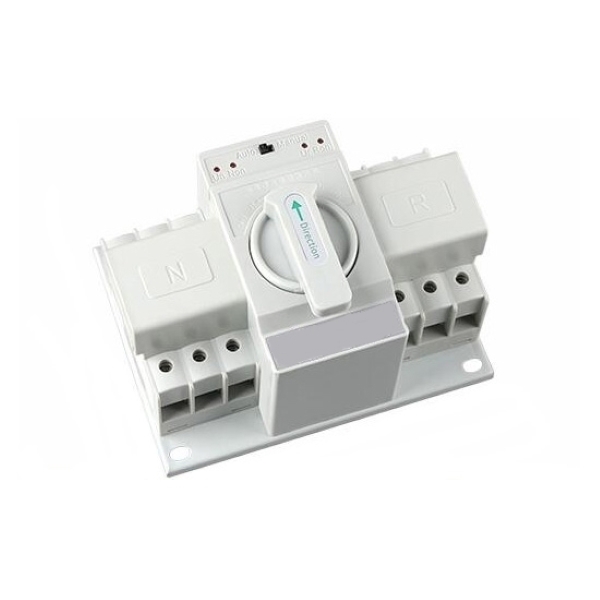

3/4-Pole Automatic Transfer Switch, 6A to 63A

PowerHome compact dual power ATS is a backup power solution built with high breaking mini circuit breakers, covering 6A–63A current specs and compatible with global 50/60Hz AC power grids. It delivers ultra-fast automatic power transfer within 3 seconds while retaining manual switching backup, with built-in circuit protection and LED status display to guarantee stable power supply. With long mechanical & electrical service life and wide environmental adaptability, this reliable changeover switch is the ideal power safeguard for all commercial, industrial and building lighting critical loads that demand zero long-time power cut.

Feature

• Complete Protection: Built-in overload and short-circuit protection with high breaking capacity mini circuit breaker inside.
• Dual Control: Equipped with auto switching and manual handle for flexible power operation in emergency scenarios.
• Compact Design: Small body with low cost, quiet running and low switching impact for easy cabinet installation.
• Wide Application: Perfect for non-interruptible power loads of malls, high-rises, banks and fire monitoring systems.

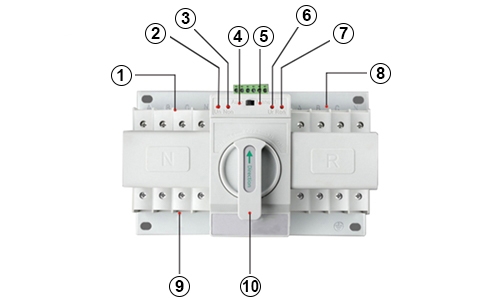

Details

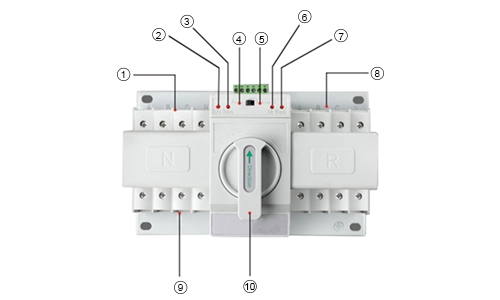

1. Commonly Used Power Supply Terminal
2. Commonly Used Incoming Line Power Indicator
3. Commonly Used Switching Power indicator
4. Automatic gear position
5. Manual shift position
6. Spare Incoming Line Power indicator
7. Standby Switching Power indicator
8. Standby Switching Power Supply Terminal
9. Load Power Outlet Terminals
10. The Manual Switch Handle

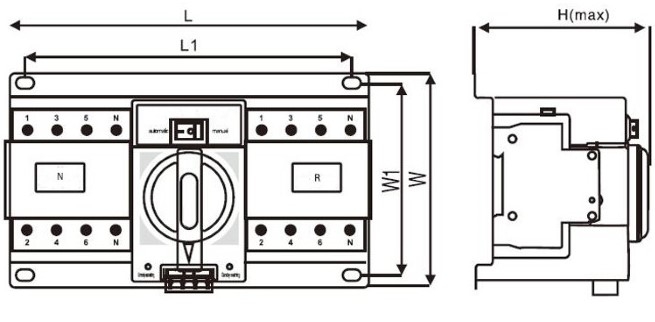

3/4 Pole Automatic Transfer Switch Dimensions(Unit: mm)

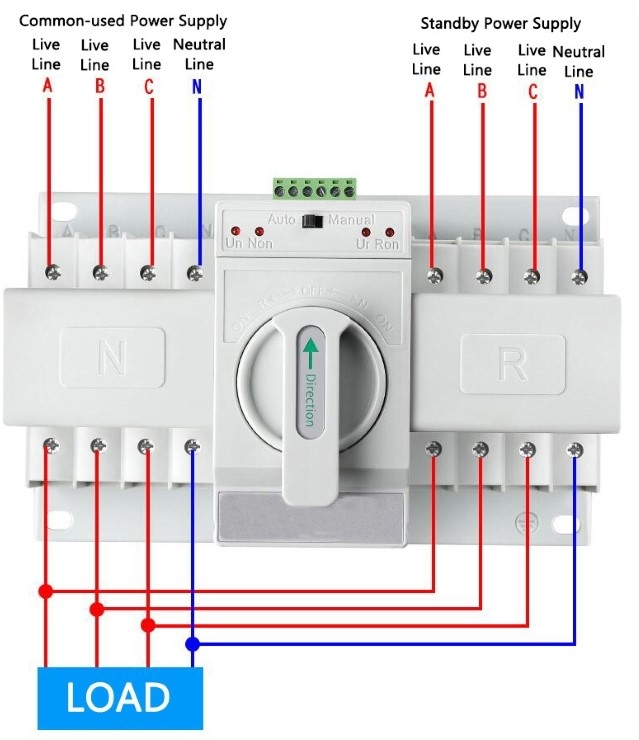

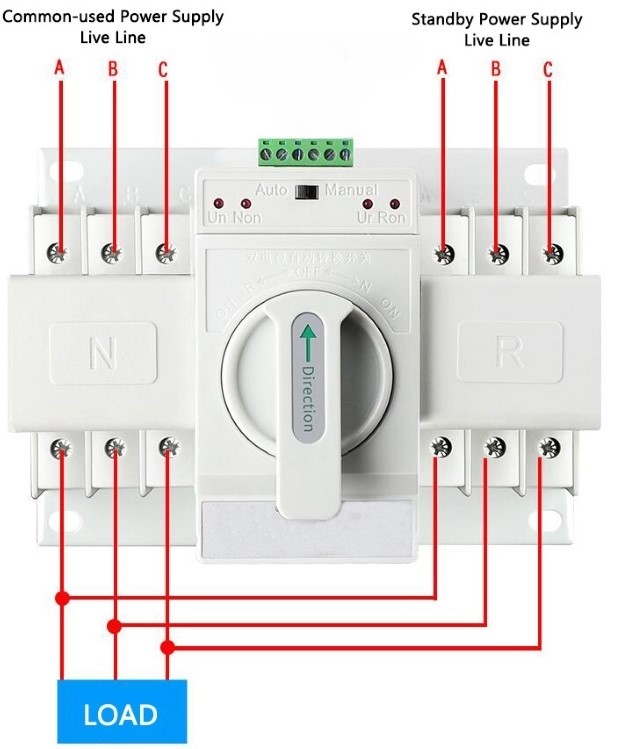

3/4 Pole Automatic Transfer Switch Wiring Diagram

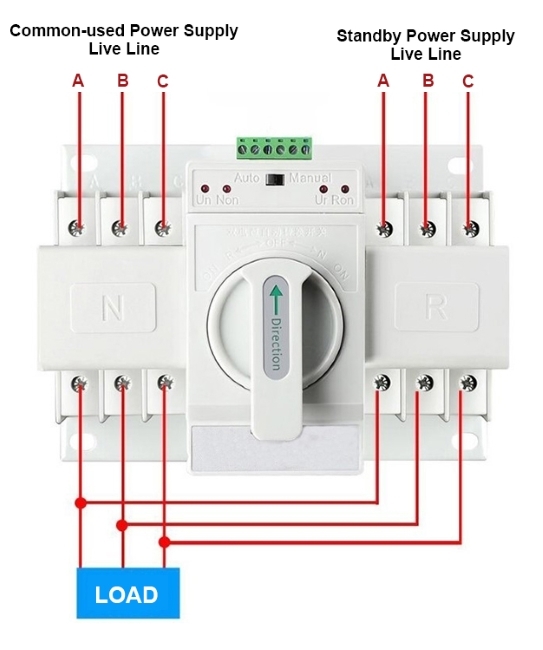

3-Pole ATS

Note: For 3-Pole ATS transfer switch, the neutral lines of common power supply and standby power supply must be connected to the corresponding terminal 3 and terminal 6 respectively, otherwise the ATS can not be automatically switched.

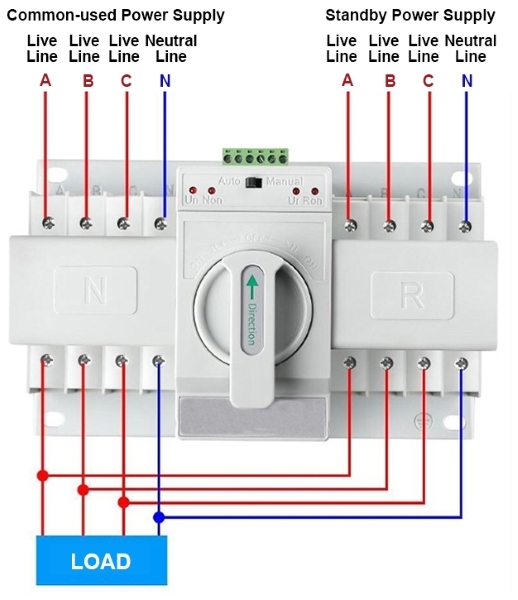

4-Pole ATS

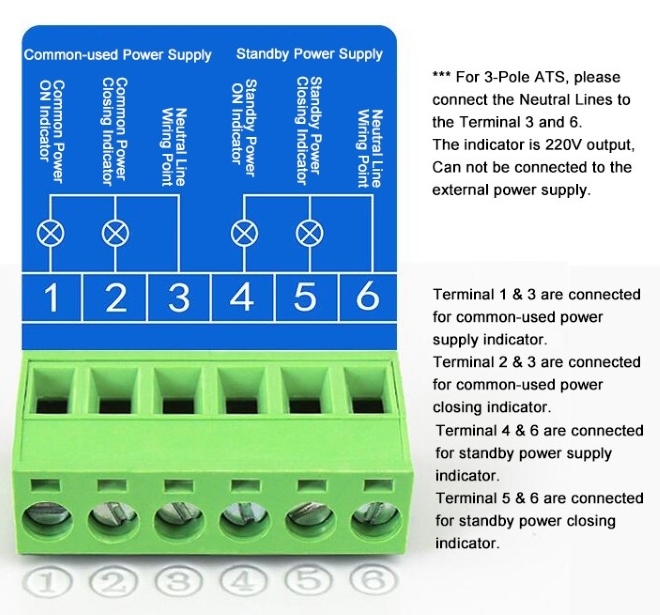

3/4 Pole Automatic Transfer Switch Output Indicator Terminal Wiring Diagram
