    Picture of 10~100 Amp Automatic Transfer Switch, 3/4 Poles

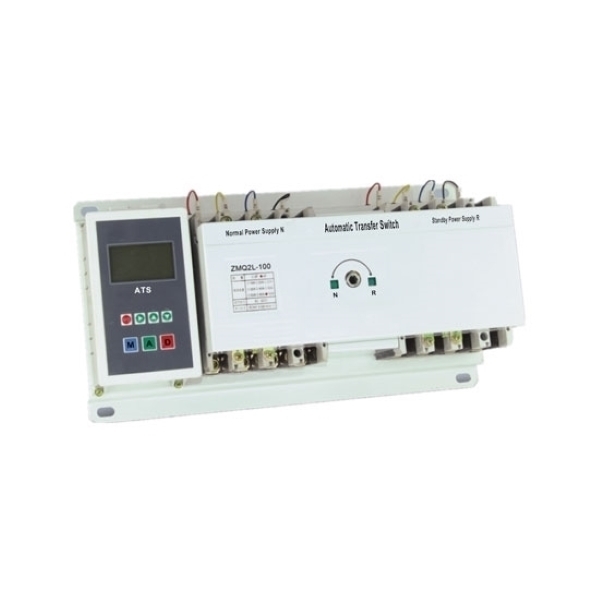

    10~100 Amp Automatic Transfer Switch, 3/4 Poles

    1 review(s) | Add your review
    SKU: PH-ATS-10100
    $436.85
    ● Rated current ranges from 10A to 100A, and 3-pole or 4-pole versions are available to fit 400VAC 50Hz circuits. ● Equipped with a microcomputer controller with adjustable transfer delay from 0 to 30 seconds and supports automatic and manual switching between mains and backup power. ● Compact and lightweight for easy installation and wiring operations. ● Dual power changeover device can adapt to various emergency power supply scenarios.
    *
    *
    *
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Related products

    63A Single Phase Automatic Transfer Switch, 110~120V/220~240V

    ● Works stably under 50Hz and 60Hz power grids with a rated current up to 63A. ● Supports dual operation modes of automatic and manual power switching. ● Whole transfer process finishes within 2 seconds with automatic reset function. ● Visible indicator lights are equipped to show real-time power working status.
    $121.09

    16A/20A/32A~63A Automatic Transfer Switch, 2 Pole

    ● Compact 2 pole ATS supporting optional rated current from 16A to 63A. ● Fits 400VAC 50Hz/60Hz power supply systems for single-phase circuits. ● Transfer switch supports both automatic power transfer and manual operation modes. ● Provides overload and short-circuit protection for connected electrical loads.
    $121.09

    6A/10A~63A Auto Transfer Switch, 3/4-Pole, 220V~480V

    ● 3/4 pole ATS supports optional rated current from 6A-63A. ● Complies with IEC947-1 & GB/T14048.11 standards for Class 3 pollution environment. ● Works under 50Hz/60Hz AC voltage up to 480V and completes power transfer within 3 seconds. ● Transfer switch supports both automatic and manual operation modes with LED power status indicators.
    $188.92
    Picture of 100~225 Amp Automatic Transfer Switch, 3/4 Poles

    100~225 Amp Automatic Transfer Switch, 3/4 Poles

    ● Cost-effective ATS supports both 3P and 4P specifications with multiple optional rated currents ranging from 100A to 225A for flexible matching demands. ● Equipped with a microcomputer control system, it supports both automatic and manual switching with adjustable 0-30 second delay time for smooth power conversion. ● Built with mechanical and electrical double interlock design and three switch positions to prevent dangerous simultaneous connection. ● Compact, lightweight and stable in performance, it widely serves critical scenarios.
    $574.61
    Picture of 250~800 Amp Automatic Transfer Switch, 3/4 Poles

    250~800 Amp Automatic Transfer Switch, 3/4 Poles

    ● Two models offer multiple rated current options covering 250A up to 800A for diverse load demands. ● Supports adjustable switching delay ranging from 0 to 30 seconds. ● Dual operation modes of automatic and manual switching are available for flexible control. ● Sustained stable performance under nominal 400 V AC mains supply, 50/60 Hz.
    $1,276.92
    Picture of 100/160/250 Amp Automatic Transfer Switch, 4-Pole

    100/160/250 Amp Automatic Transfer Switch, 4-Pole

    ● 4-pole transfer switch supports conventional thermal current options of 100A/160A/250A. ● Operates stably under 400V AC 50Hz distribution systems with 690V rated insulation voltage. ● Three optional controller modes including full auto, forced 0-position cutoff and remote control are available. ● Its power transfer time ranges from 0.5s to 1.1s to meet diverse power switching demands.
    $358.54
    Overview

    Intelligent ATS automatic transfer switch is a dual-power switching device built with a microcomputer controller and main switch body, suitable for 400V AC 50/60Hz power systems. It supports both automatic and manual power switching with mechanical and electrical double interlock protection, offering three working positions: Main power on, dual power cut-off, standby power on. IP30-rated switch passes strict insulation and breaking current tests, conforming to IEC and national standards.

    10-100 Amp Automatic Transfer Switch Feature

    Feature

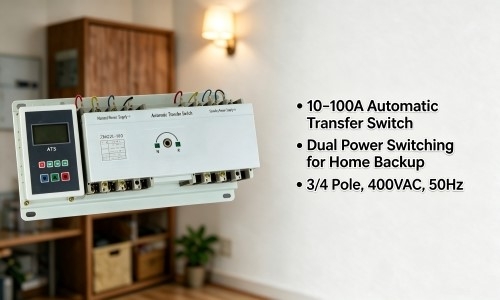

    • Wide Current Options: Covers full current range from 10A to 100A, selectable in 3-pole or 4-pole.
    • Dual Safety Interlock: Adopts mechanical and electrical double interlock design to prevent simultaneous connection for safe operation.
    • Adjustable Delay Control: Features 0–30 seconds customizable switching delay to avoid frequent power transfer.
    • Broad Application Scope: Ideal for hospitals, airports, commercial plazas and residential power backup scenarios.


    Details

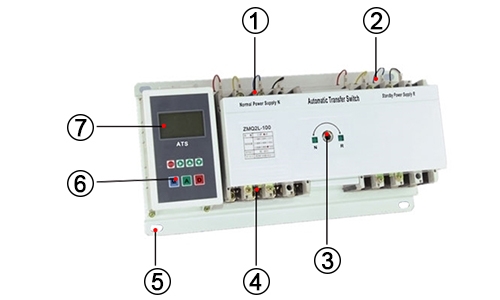

    1. Commonly Used Power Supply Terminals: Wiring ports for connecting the main municipal power input.
    2. Standby Power Supply Terminals: Connection ports for backup power like generators or solar storage.
    3. The Manual Switch Handle: Manual operation knob for power switching when automatic mode fails.
    4. Load Power Outlet: Output terminals to link all downstream electrical loads.
    5. Mounting Holes: Reserved holes for quick fixed installation inside electrical cabinets.
    6. Control Panel: Equipped with operation buttons.
    7. LCD Display: Built-in screen to show real-time status of dual power sources.
    10-100 Amp Automatic Transfer Switch Details

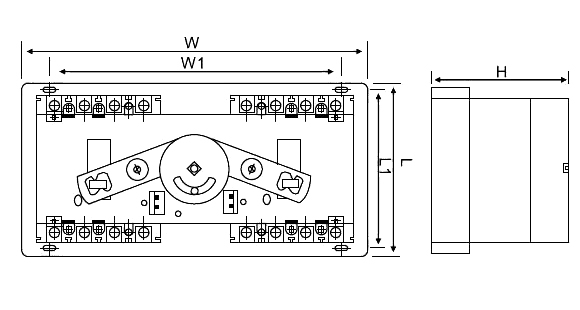

    10A-100A Automatic Transfer Switch Dimensions(Unit: mm)

    10-100 Amp Automatic Transfer Switch Dimensions

    Type W W1 L L1 H
    PH-ZMQ2F/L-100/3P 390 350 210 190 120
    PH-ZMQ2F/L-100/4P 495 460 210 190 135


    10A-100A Automatic Transfer Switch Wiring Diagram

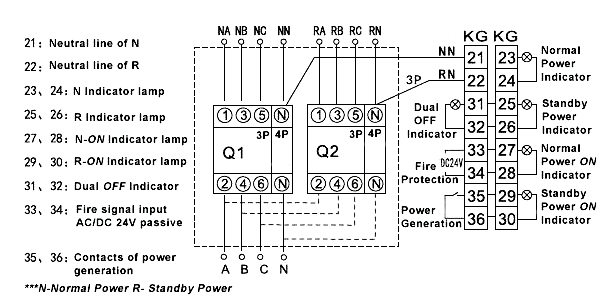

    10-100A Automatic Transfer Switch Wiring Diagram

    • The wiring diagram shown above is for reference only, and wiring layouts vary based on distinct product models and functional configurations.
    • In the event of a fire, the firefighting control room will transmit an active EPS signal, which triggers tripping or disconnection of circuit breakers Q1 and Q2.
    • Q1 and Q2 denote circuit breakers.
    • KG stands for wiring terminals.
    • R and N power status indicator lights are external accessories to be supplied by the customer.
    • All components marked with dashed lines need to be prepared by the user separately.

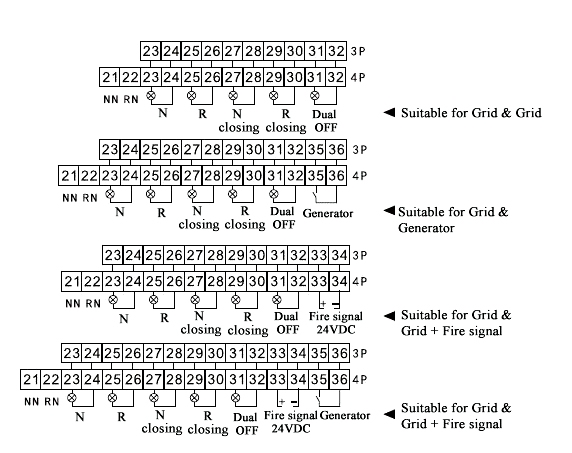

    10-100A Automatic Transfer Switch Wiring Diagram

    • 3P refers to 3-pole circuit breaker and 4P means 4-pole circuit breaker.
    • 24VDC (external) is supplied by the fire control center.
    Specs
    Frame Current 100A
    Rated Operating Current (Optional) 10A, 16A, 20A, 32A, 40A, 50A, 63A, 80A, 100A
    Number of Poles (Optional) 3-pole 4-pole
    Breaking Current 22kA 35kA
    Rated Operating Voltage 400V AC
    Insulation Voltage 2500V one minute, no flicker and no breakdown for one minute
    Frequency 50/60Hz
    Delay Time 0-30s (Adjustable)
    Controller Rated Working Voltage 230V AC
    Mechanical Life 5,000 times
    Structure Type (Optional) Integral type (F) or split type (L)
    Environment Altitude ≤2000m
    Ambient Temperature -5℃~+40℃, the 24-hour average temperature does not exceed +35℃
    Relative Humidity RH≤50% @ +40℃; at a lower temperature, it is allowable to have a higher humidity.
    Please pay more attention to the condensation produced on the product surface with the change of humidity.
    Installation No explosive medium, and no medium of gas and dust is enough to corrode and damage the insulation.
    No significant shock and vibration.
    Standards Compliance to IEC6094-6-1, GB14048.11-2008
    Protection Class IP30
    Weight 7.2kg 8.8kg

    ATS Catalog

    PDF computingPowerHome Automatic Transfer Switch Catalog.PDF

    ATS User Manual

    PDF computingPowerHome 6-63A Automatic Transfer Switch User Manual.PDF

    PDF computingPowerHome ZMQ5 100/160/250A Automatic Transfer Switch User Manual.PDF

    Application

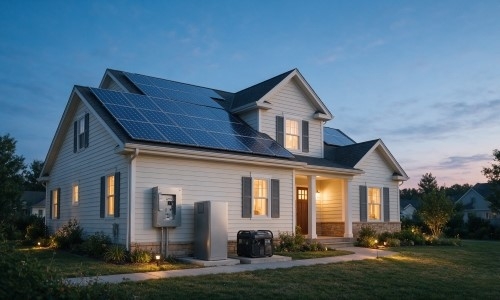

    ATS for Home

    ATS for Home

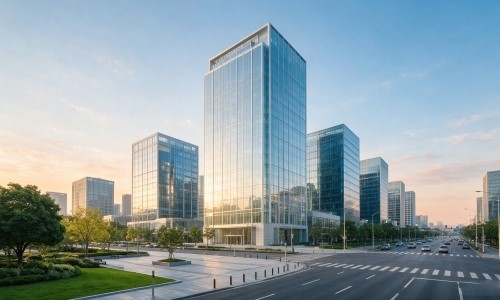

    ATS for Commercial Office Building

    ATS for Commercial Office Building

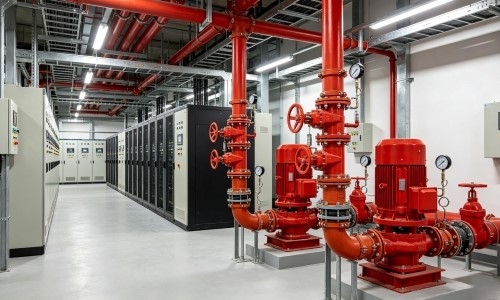

    ATS for Fire and Server Equipment

    ATS for Fire & Server Equipment

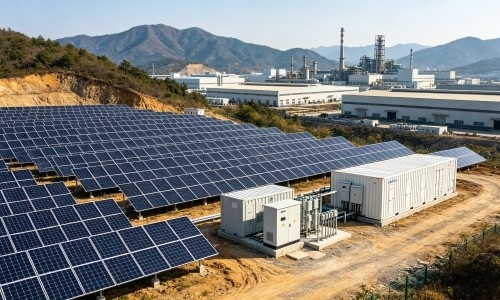

    ATS for PV Energy Storage Station

    ATS for PV Energy Storage Station

    FAQ

    Q1: How does the ATS automatic transfer switch work?

    The ATS supports emergency power systems to automatically switch loads between main and backup power for steady operation of key devices. Its built-in controller samples dual-source voltage constantly, and the microprocessor sends switch commands with adjustable delay to shift power or cut off both circuits. The ATS also displays power faults in real time through its LCD screen and indicator lights.

    Q2: What is the difference between integral type and split type ATS?

    The integral ATS integrates the control panel and main switch body inside one single housing, featuring simple wiring and quick installation for residential villas, small shops and household PV storage systems. The split ATS separates the main switching unit and control display panel; the panel can be mounted separately on cabinet doors, making the ATS ideal for high-current industrial power distribution, fire pump rooms and large commercial energy storage stations for easier daily operation and maintenance.
