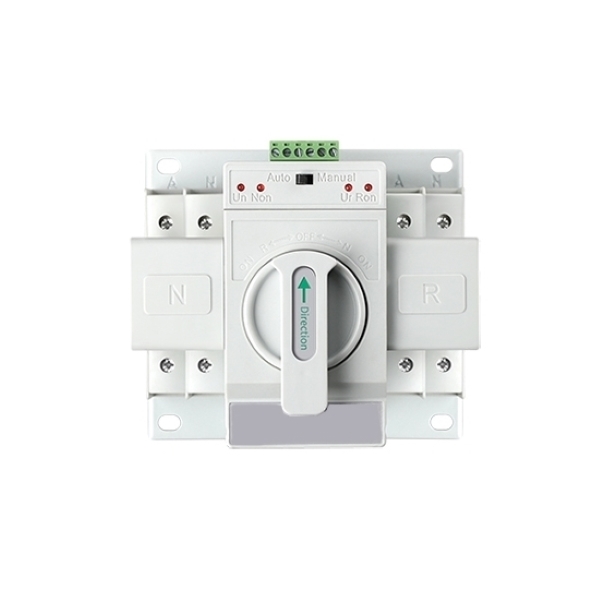

63A Single Phase Automatic Transfer Switch, 110-120V/220-240V

PowerHome 1-phase ATS is a durable dual-power switching device built for uninterrupted power supply demands. Equipped with visible indicator lamps, dual auto/manual control and complete overload & short-circuit protection, this CB-grade ATS features simple wiring and quiet stable operation, perfectly matching residential electricity, commercial lighting circuits, small solar energy storage and other non-stop power scenarios. With strict compliance to international and domestic electrical standards, it brings reliable long-term performance at a competitive price for all your backup power needs.

Feature

• Wide Voltage Adaptation: Compatible with AC 110-120V and AC 220-240V grids to fit most global household power environments.
• Full Circuit Protection: Built-in overload and short-circuit protection to safeguard electrical loads from circuit damage.
• Signal Output Function: Reserved auxiliary signal terminals to output closing status for external indicator lights and remote monitoring.
• Stable CB Grade Performance: Meets IEC industrial standards with long service life and low operational noise.

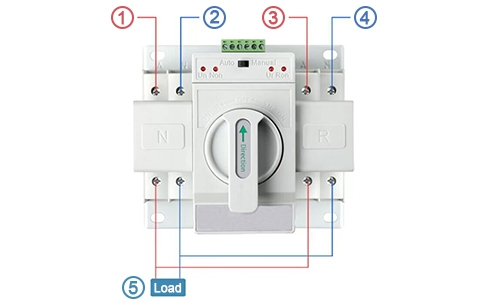

Details

1. Commonly-used Live Wire: Primary power live cable, main power input phase line.
2. Commonly-used Neutral Wire: Primary power neutral cable, zero line for regular power supply.
3. Spare Live Wire: Backup power live cable, standby power phase line for emergency use.
4. Spare Neutral Wire: Backup power neutral cable, zero line of reserve power source.
5. Load: Output terminal connected to all electrical loads, delivers power to end equipment.

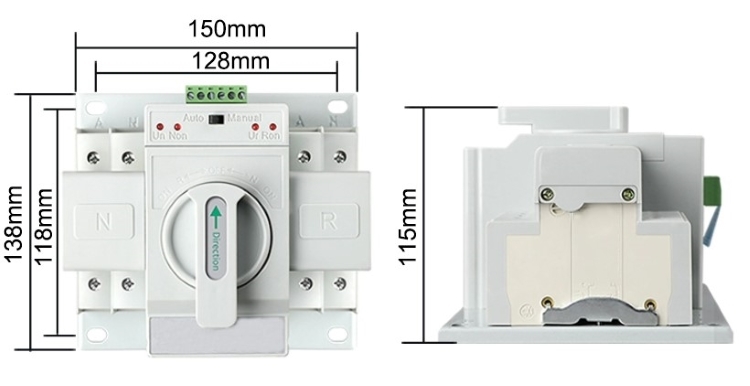

63A Single Phase ATS Dimensions(Unit: mm)

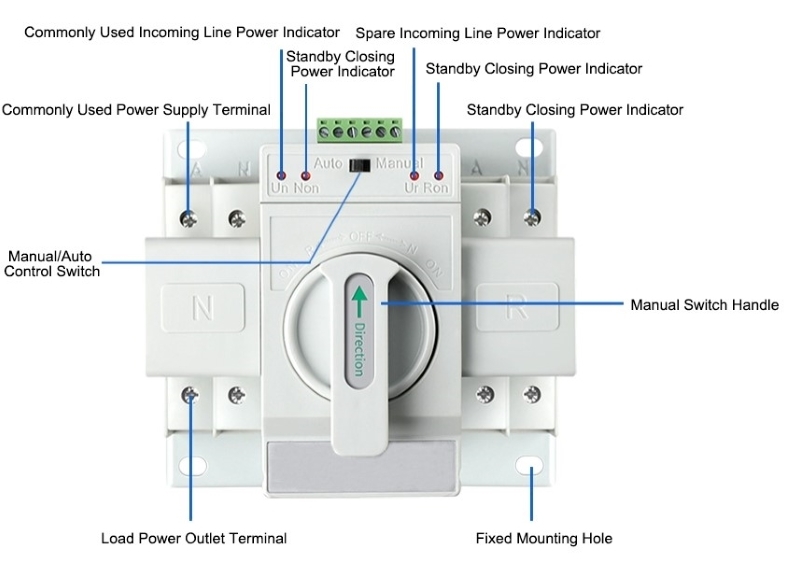

63A Single Phase ATS Structure

63A Single Phase ATS Output Indicator Terminal Wiring Diagram
