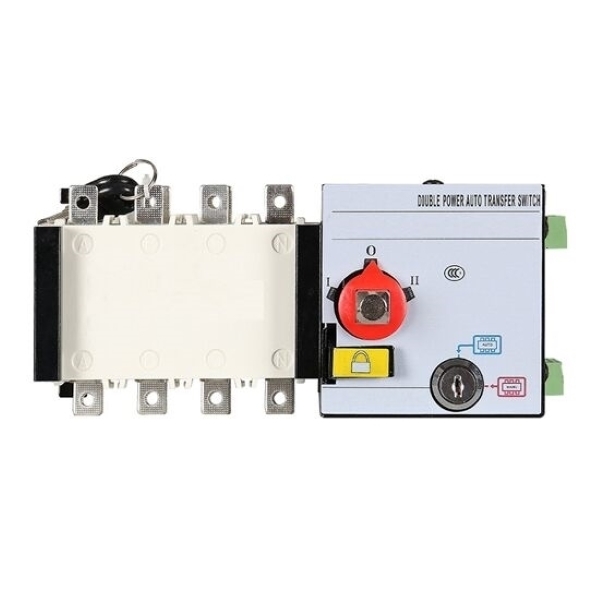

4 Pole Dual Power Auto Transfer Switch, 1000/1600/2000 to 3200 amp

SKU: PH-ATS-GCQ4

$1,864.21

● Mutiple dual power ATS model supports 4P rated current specifications ranging from 1000A to 3200A. ● Features a 1.2-2.4s fast dual-power change-over time for uninterrupted power supply. ● Auto transfer switch works steadily within -25℃ to +70℃ working temperature range. ● Widely applied in hospitals, shopping malls, airports and commercial buildings.

Rated Current *

Qty:

🚚 Free shipping

⏱️ Delivery: 6-12 days

🔙 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

PowerHome high-quality 4P dual power automatic transfer switch covers full current specifications, capable of fast power switching to guarantee uninterrupted power for key facilities. Crafted with high-performance circuit breaking components, this ATS integrates outstanding safety isolation and excellent temperature tolerance, delivering steady and trouble-free daily operation. With economical pricing and universal applicability across hospitals, shopping malls, airports and military sites.

Feature

Secure Operation: Equipped with complete isolation protection and strong short-circuit resistance to eliminate power safety risks.
Flexible Matching: Multiple current specifications and stable compatibility adapt to various scenarios.
Reliable Structure: Optimized breaker framework with low noise and extended service life for long-term continuous use.
Wide Environment Adaptability: Tolerates wide storage and working temperature ranges to maintain stable performance in harsh scenes.

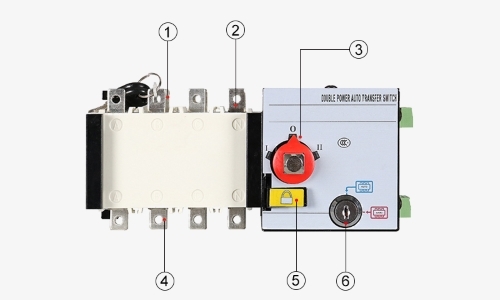

Details

Standby Power Terminal: Connects backup power sources like generators for emergency power supply.
Commonly Used Power Terminal: Access the regular mains power supply for daily electricity use.
Manual Switch Handle: Manually shift between two power supplies during automatic system failures.
Load Power Outlet: Transmit electric power to all household and industrial electrical loads.
Padlock Position: Locking position to install padlocks and prevent unintended switch operation.
Manual/Automatic Switch Lock: Key lock to toggle and fix manual or automatic working mode.

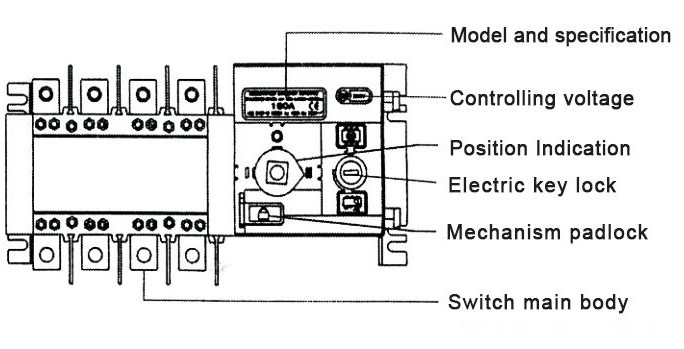

Dual Power Automatic Transfer Switch Structure

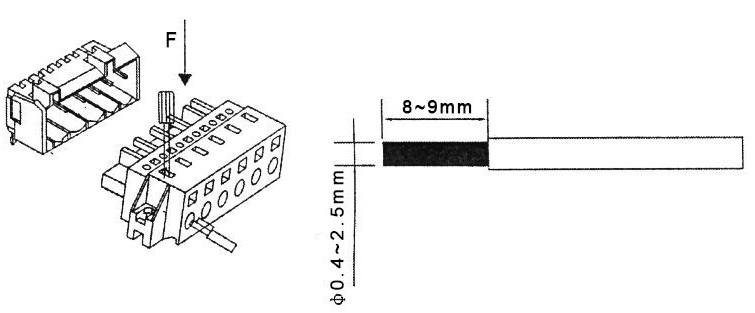

Dual Power Automatic Transfer Switch Terminal Connection Method

Specs

Model	PH-4P1000A	PH-4P1250A	PH-4P1600A	PH-4P2000A	PH-4P2500A	PH-4P3200A
Rated Current	1000A	1250A	1600A	2000A	2500A	3200A
Rated Limit Short-circuit Current	70 kA	100 kA	120 kA	120 kA	120 kA	120 kA
Rated Short-time Withstand Current	26 kA	50 kA	50 kA	50 kA	50 kA	55 kA
Change-over Time	1.2s	1.2s	1.2s	1.8s	1.8s	2.4s
Normal Rated Power	98W	98W	98W	120W	120W	120W
Weight	45kg	49.5kg	52.5kg	84kg	95kg	105kg
Number of Poles	4P
Rated Insulation Voltage	1000V
Rated Shock Withstand Voltage	12 kV
Rated Working Voltage	AC 400V
Rated Marking Capacity	10 le
Rated Breaking Capacity	8 le
Working Temperature	-25 ℃ ~ +70 ℃
Storage Temperature	-30 ℃ ~ +80 ℃

Application

ATS for Cold Storage Use

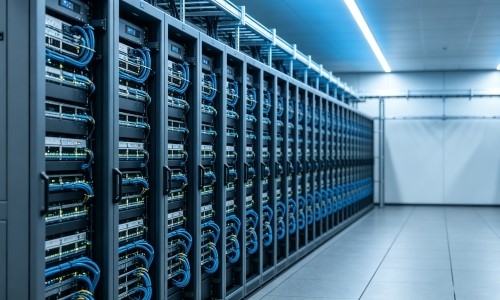

ATS for Data Center Use

ATS for ICU Medical Use

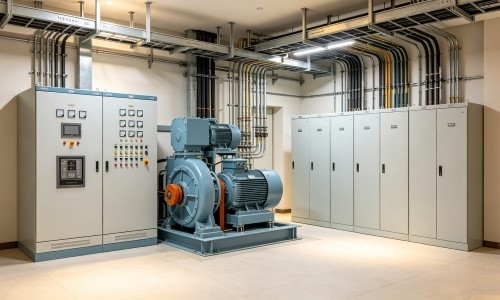

ATS for Elevator System Use

FAQ

Q1: Why do households need an automatic transfer switch?

An automatic transfer switch isolates home circuits from utility power lines to prevent dangerous back-feed that may damage generators, trigger fires or electrocute power maintenance workers. It also eliminates messy, time-consuming extension cord setups during blackouts, allowing furnaces, water pumps and all household appliances to safely draw power from generators via the original home wiring system.

Q2: What benefits can automatic transfer switches bring to businesses?

Automatic transfer switches boost business power reliability by cutting manual generator connection delays and costly downtime, remove electrical hazards of dark manual wiring operations for staff, and enable automatic power supply for critical loads including lighting, HVAC, industrial machinery and refrigeration equipment to streamline power recovery and maximize generator efficiency.
