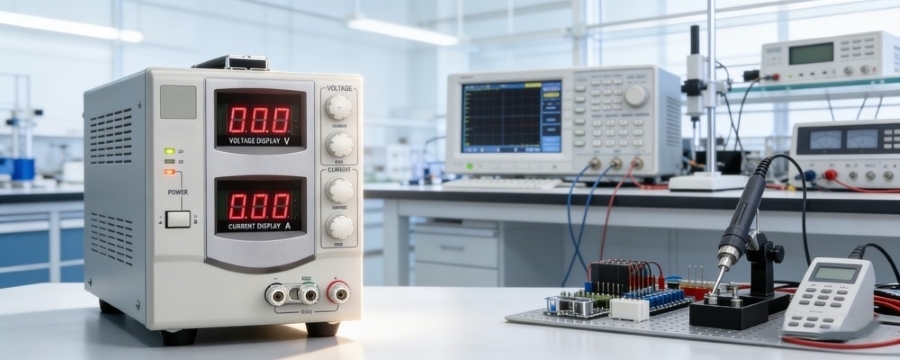

Linear DC Power Supply

A linear DC power supply is a device that converts alternating current (AC) into stable direct current (DC) through linear regulation. It delivers continuously adjustable DC voltage and current with extremely low ripple and fast transient response. It is typically used in applications requiring high-precision power, such as electronic testing, R&D laboratories, and precision instrument power supply. In an era where electronic devices are becoming increasingly sophisticated and demanding in terms of power quality, the linear DC power supply — with its high efficiency, low noise, and exceptional stability — has become widely adopted in fields such as laboratory testing, communication equipment, medical instruments, audio systems, and industrial control. Compared to switching power supplies, linear power supplies stand out for their superior voltage stability and ultra-low output ripple, making them the ideal choice for equipment that demands clean and reliable power.

Core Structure & Working Principle

To understand why linear DC power supplies deliver such clean and stable power, it is essential to first examine their internal structure and working principle. Unlike switching power supplies, linear power supplies employ a simpler yet more precise circuit design, with each stage serving the same goal: to output clean, stable, and controllable DC power. The structure of a linear DC power supply is clear and well-defined, consisting of the following four main components:

The internal structure of a linear DC power supply is clear and well-defined. First, the input AC voltage passes through a transformer, where it is stepped down to a level suitable for output while providing electrical isolation to enhance safety. Second, the rectifier circuit converts the AC voltage into pulsating DC using a bridge rectifier, laying the foundation for subsequent processing. Third, the filter circuit smooths the pulsating DC voltage using a network of capacitors and inductors, initially reducing output ripple. Finally, the linear regulator circuit precisely controls the output voltage with linear regulating components such as power transistors, achieving high stability and low noise through a negative feedback mechanism.

These principles represent the core difference between linear and switching power supplies. It is this carefully integrated design that makes linear DC power supplies irreplaceable in applications that demand high-purity power.

Advantages of Linear DC Power Supply

Whether it is for protecting sensitive equipment or ensuring long-term operational reliability, linear power supplies offer distinct practical advantages. Their architecture delivers tangible benefits in a variety of ways:

• Ultra-Low Output Ripple and Noise: The linear architecture inherently avoids the high-frequency switching interference found in switching power supplies, resulting in clean output waveforms ideal for noise-sensitive devices.
• High Stability and Precision: Output voltage varies minimally under load changes or input voltage fluctuations, making it suitable for test and measurement applications, sensor power supplies, and more.
• Fast Transient Response: Linear power supplies respond almost instantly to load changes, ensuring stable operation of connected equipment.
• Simple Structure & Easy Maintenance: With a relatively straightforward internal circuit, these units feature long component lifespans and low failure rates, making them easy to maintain over extended periods of use.
• Comprehensive Protection Features: Products typically include overload protection, short-circuit protection, over-temperature protection, and current limiting functions to ensure the safety of both the equipment and the user.

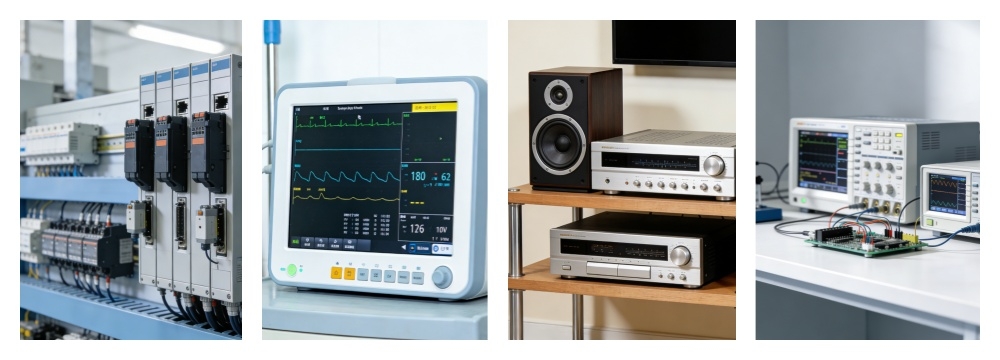

Application

Linear DC power supplies are widely used in fields with high requirements for power quality. Key application areas include:

1. Laboratories and Research Institutions: Providing stable power for circuit experiments, device testing, and precision measurements.
2. Communication and Broadcast Equipment: Delivering low-interference power for base stations, repeaters, audio equipment, and more.
3. Medical Devices: Used in electrocardiographs, patient monitors, and other equipment that demands high power stability.
4. Industrial Control and Automation: Supplying reliable DC power for sensors, controllers, PLCs, and similar devices.
5. Audio and Video Equipment: Providing clean power for high-end amplifiers, DACs, recording equipment, and other audio components to enhance sound quality.

Imagine a precision test system running steadily in your laboratory, with every data point supported by clean, interference-free power. Or picture an automated production line in your factory operating continuously, backed by a reliable, ultra-low ripple linear DC power supply working quietly in the background. Unobtrusive yet essential, it forms the foundation for precise and dependable operation.

When selecting a linear DC power supply, you don't need to be overwhelmed by complex specifications. Focus on a few key factors: whether the voltage and current ratings match your equipment's requirements, whether the output ripple meets the demands of your application, whether necessary protection features are included, and whether the control interface is user-friendly. Making a choice based on your actual usage scenario is often more important than pursuing the highest specifications.

If you are looking for a stable, reliable linear DC power supply, visit PowerHome.com. We offer a wide range of linear DC power supply products to meet various needs — from laboratory testing to industrial applications. Every product undergoes rigorous quality testing to ensure clean output and stable operation. Let PowerHome provide you with safe, efficient, and worry-free power support, serving as a solid foundation for your equipment and projects.
