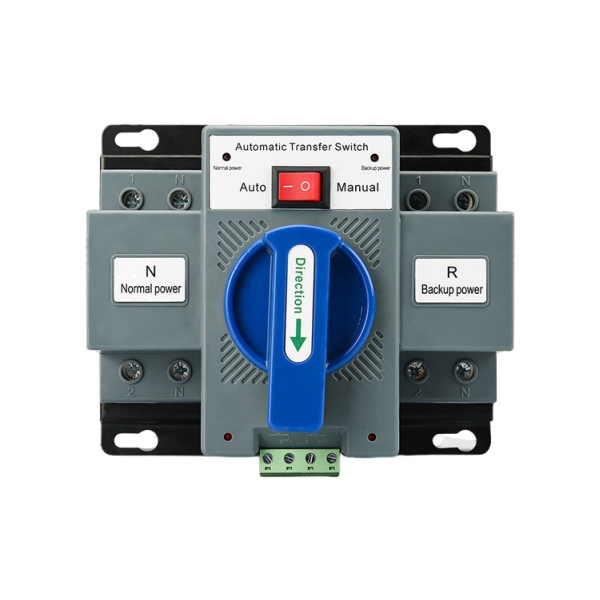

    63A Mini Home Automatic Transfer Switch, 2-Pole/4-Pole

    1 review(s) | Add your review
    SKU: PH-ATS-GRKQ2
    $79.23
    ● Supports automatic and manual dual operation modes for flexible power switching. ● Offered in 2P/4P types and compatible with optional 110V, 220V, 380V voltages. ● Features 63A rated current and 6kA breaking capacity against short-circuit hazards. ● Designed to CB level standard and adapts to 50Hz/60Hz power frequency.
    *
    *
    *
    🚚 Free shipping
    ⏱️ Delivery: 6-12 days
    🔙 30-day Returns
    Related products

    63A Single Phase Automatic Transfer Switch, 110~120V/220~240V

    ● Works stably under 50Hz and 60Hz power grids with a rated current up to 63A. ● Supports dual operation modes of automatic and manual power switching. ● Whole transfer process finishes within 2 seconds with automatic reset function. ● Visible indicator lights are equipped to show real-time power working status.
    $121.09

    16A/20A/32A~63A Automatic Transfer Switch, 2 Pole

    ● Compact 2 pole ATS supporting optional rated current from 16A to 63A. ● Fits 400VAC 50Hz/60Hz power supply systems for single-phase circuits. ● Transfer switch supports both automatic power transfer and manual operation modes. ● Provides overload and short-circuit protection for connected electrical loads.
    $121.09

    6A/10A~63A Auto Transfer Switch, 3/4-Pole, 220V~480V

    ● 3/4 pole ATS supports optional rated current from 6A-63A. ● Complies with IEC947-1 & GB/T14048.11 standards for Class 3 pollution environment. ● Works under 50Hz/60Hz AC voltage up to 480V and completes power transfer within 3 seconds. ● Transfer switch supports both automatic and manual operation modes with LED power status indicators.
    $188.92
    Picture of 10~100 Amp Automatic Transfer Switch, 3/4 Poles

    10~100 Amp Automatic Transfer Switch, 3/4 Poles

    ● Rated current ranges from 10A to 100A, and 3-pole or 4-pole versions are available to fit 400VAC 50Hz circuits. ● Equipped with a microcomputer controller with adjustable transfer delay from 0 to 30 seconds and supports automatic and manual switching between mains and backup power. ● Compact and lightweight for easy installation and wiring operations. ● Dual power changeover device can adapt to various emergency power supply scenarios.
    $436.85
    Picture of 100~225 Amp Automatic Transfer Switch, 3/4 Poles

    100~225 Amp Automatic Transfer Switch, 3/4 Poles

    ● Cost-effective ATS supports both 3P and 4P specifications with multiple optional rated currents ranging from 100A to 225A for flexible matching demands. ● Equipped with a microcomputer control system, it supports both automatic and manual switching with adjustable 0-30 second delay time for smooth power conversion. ● Built with mechanical and electrical double interlock design and three switch positions to prevent dangerous simultaneous connection. ● Compact, lightweight and stable in performance, it widely serves critical scenarios.
    $574.61
    Picture of 250~800 Amp Automatic Transfer Switch, 3/4 Poles

    250~800 Amp Automatic Transfer Switch, 3/4 Poles

    ● Two models offer multiple rated current options covering 250A up to 800A for diverse load demands. ● Supports adjustable switching delay ranging from 0 to 30 seconds. ● Dual operation modes of automatic and manual switching are available for flexible control. ● Sustained stable performance under nominal 400 V AC mains supply, 50/60 Hz.
    $1,276.92
    Overview

    Mini residential automatic transfer switch delivers dependable power switching between two separate power supplies for home use. Boasting fast switching speed, dual control and robust mechanical interlock safety structure, it effectively safeguards your home devices during mains power failure. The compact body supports two installation ways, while multi-voltage compatibility ensure broad applicability. Invest in this ATS to gain stable backup power conversion and create a safer power consumption environment for your residence.

    Home Automatic Transfer Switch Feature

    Feature

    • Fast Switching: It finishes power transfer in about 1 second to minimize downtime of household electrical appliances.
    • Compact Size: Space-saving compact design supports both DIN rail and surface mounting for flexible installation.
    • Dual Control Mode: Equipped with automatic transfer function as well as mechanical manual handle for emergency operation.
    • Reliable Safety Protection: Built-in mechanical interlock avoids simultaneous connection of two power sources and prevents dangerous short circuits.

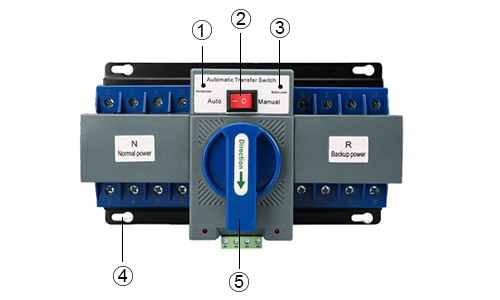

    Details

    1. Normal Power Indicator: Working light for main power supply.
    2. Auto / Manual Button: Mode switch toggle button.
    3. Back Power Indicator: Working light for standby power supply.
    4. Dual Mount Bracket: Din rail & surface dual installation base.
    5. Manual Operating Handle: Mechanical manual switch for power transfer with interlock protection.
    Home Automatic Transfer Switch Details

    Home Automatic Transfer Switch Dimension(Unit: mm)

    • 2-Pole ATS

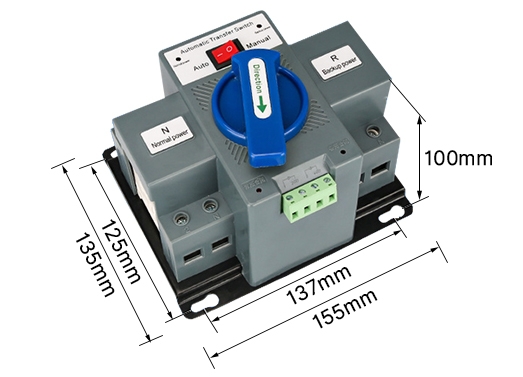

    2P Home Automatic Transfer Switch Dimension

    • 4-Pole ATS

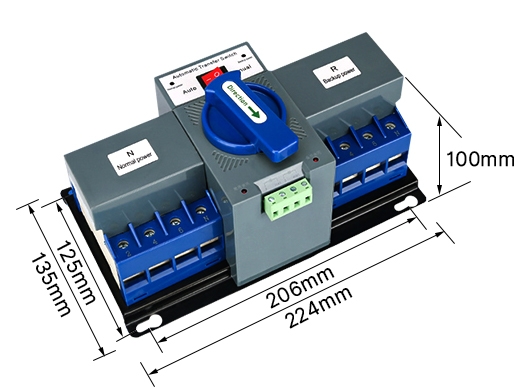

    4P Home Automatic Transfer Switch Dimension

    Home Automatic Transfer Switch Dimension Wiring Diagram

    • 2-Pole ATS

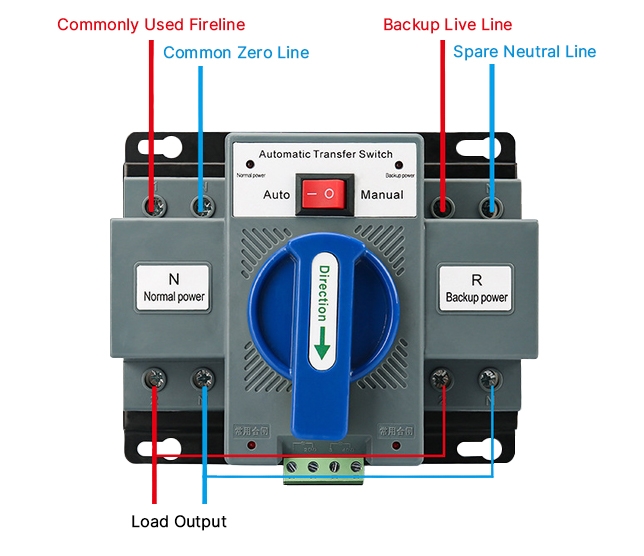

    2P Home Automatic Transfer Switch Dimension Wiring Diagram

    • 4-Pole ATS

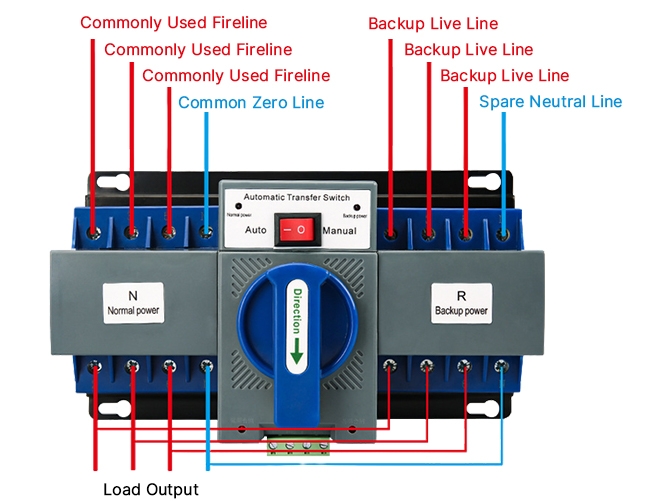

    4P Home Automatic Transfer Switch Dimension Wiring Diagram

    Specs
    Number of Poles 2P/4P
    Frame Current 100A
    Rated Current 63A
    Rated Voltage 110V, 220V, 380V Optional
    Breaking Capacity 6KA
    Switching Speed About 1s
    Rated Frequency 50Hz/60Hz
    Electrical Level CB Level
    Operation Mode Auto & Manual
    Application
    ATS for Commercial Office

    ATS for Commercial Office

    ATS for Home

    ATS for Home

    ATS for RV

    ATS for RV

    ATS for Data Center

    ATS for Data Center

    FAQ

    Q1: Can I control the ATS when automatic function stops working?

    Yes. Most household ATS comes with a mechanical manual operating handle. You can manually switch power circuits during power outages, equipment maintenance or electronic control failures.

    Q2: What kinds of power sources can a home ATS connect?

    It can be used for switching between two independent power supplies, such as grid electricity, generators, battery energy storage systems and other standby power equipment for home usage.

    1 review(s)
    5.0 1
    Write your own review Close
    *
    *
    Sebastian | 8/4/2026 1:02 AM
    Reliable Backup Switch for Home Generator Setup
    Got the 2P 110V backup switch for my home generator setup. Installation was straightforward with the DIN rail mount, and the automatic transfer works fast when the power goes out. The mechanical interlock gives me confidence that there is no risk of backfeeding. It has been reliable through several outages and is a great addition to my home backup power system.
