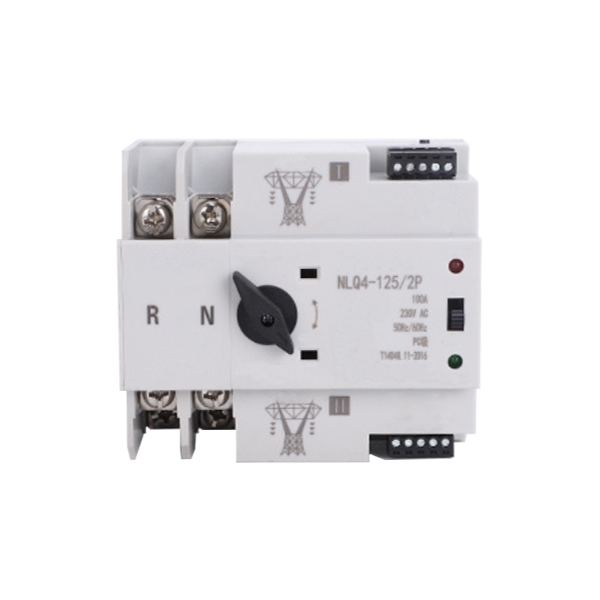

    20~100A Dual Power WiFi Automatic Transfer Switch, 2P/3P/4P

    0 review(s) | Add your review
    SKU: PH-ATS-NLQ4
    $110.54
    ● PC‑class automatic transfer switch is available in 2/3/4P pole versions for different power‑supply layouts. ● Ensure safe isolation during dual‑source power switching. ● Supports 220V and 380V AC input and works under 50Hz or 60Hz power frequency. ● Covers 16A‑125A to match loads of various power consumption levels.
    *
    *
    đźšš Free shipping
    ⏱️ Delivery: 6-12 days
    đź”™ 30-day Returns
    Related products

    63A Single Phase Automatic Transfer Switch, 110~120V/220~240V

    ● Works stably under 50Hz and 60Hz power grids with a rated current up to 63A. ● Supports dual operation modes of automatic and manual power switching. ● Whole transfer process finishes within 2 seconds with automatic reset function. ● Visible indicator lights are equipped to show real-time power working status.
    $121.09

    16A/20A/32A~63A Automatic Transfer Switch, 2 Pole

    ● Compact 2 pole ATS supporting optional rated current from 16A to 63A. ● Fits 400VAC 50Hz/60Hz power supply systems for single-phase circuits. ● Transfer switch supports both automatic power transfer and manual operation modes. ● Provides overload and short-circuit protection for connected electrical loads.
    $121.09

    6A/10A~63A Auto Transfer Switch, 3/4-Pole, 220V~480V

    ● 3/4 pole ATS supports optional rated current from 6A-63A. ● Complies with IEC947-1 & GB/T14048.11 standards for Class 3 pollution environment. ● Works under 50Hz/60Hz AC voltage up to 480V and completes power transfer within 3 seconds. ● Transfer switch supports both automatic and manual operation modes with LED power status indicators.
    $188.92
    Picture of 10~100 Amp Automatic Transfer Switch, 3/4 Poles

    10~100 Amp Automatic Transfer Switch, 3/4 Poles

    ● Rated current ranges from 10A to 100A, and 3-pole or 4-pole versions are available to fit 400VAC 50Hz circuits. ● Equipped with a microcomputer controller with adjustable transfer delay from 0 to 30 seconds and supports automatic and manual switching between mains and backup power. ● Compact and lightweight for easy installation and wiring operations. ● Dual power changeover device can adapt to various emergency power supply scenarios.
    $436.85
    Picture of 100~225 Amp Automatic Transfer Switch, 3/4 Poles

    100~225 Amp Automatic Transfer Switch, 3/4 Poles

    ● Cost-effective ATS supports both 3P and 4P specifications with multiple optional rated currents ranging from 100A to 225A for flexible matching demands. ● Equipped with a microcomputer control system, it supports both automatic and manual switching with adjustable 0-30 second delay time for smooth power conversion. ● Built with mechanical and electrical double interlock design and three switch positions to prevent dangerous simultaneous connection. ● Compact, lightweight and stable in performance, it widely serves critical scenarios.
    $574.61
    Picture of 250~800 Amp Automatic Transfer Switch, 3/4 Poles

    250~800 Amp Automatic Transfer Switch, 3/4 Poles

    ● Two models offer multiple rated current options covering 250A up to 800A for diverse load demands. ● Supports adjustable switching delay ranging from 0 to 30 seconds. ● Dual operation modes of automatic and manual switching are available for flexible control. ● Sustained stable performance under nominal 400 V AC mains supply, 50/60 Hz.
    $1,276.92
    Overview

    WiFi automatic transfer switch offers reliable dual‑source power change‑over for household, office and small backup‑power applications. Built to PC‑class safety standards, it delivers stable millisecond‑range power switching and flexible operation options to guard your loads against mains power failure. With multiple pole and current specifications available, this unit can easily fit most common low‑voltage backup‑power projects and bring you worry‑free power‑supply protection.

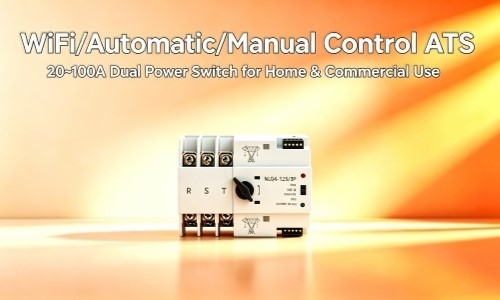

    Dual Power WiFi ATS Features

    Feature

    • WiFi Remote: Integrated WiFi module allows remote status checking and switching control beyond local physical operation.
    • Rapid Transfer: Millisecond‑level switchover time reduces power‑off interruption for connected critical equipment.
    • Dual‑Mode Control: Supports fully‑automatic running for daily use and manual override for maintenance work.
    • Wide Compatibility: Works with two independent AC power sources including mains grid, solar or backup power supply.

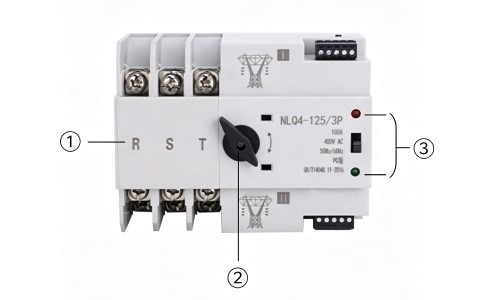

    Details

    1. Flame‑retardant Housing: High‑strength flame‑retardant plastic housing provides insulation and anti‑burn performance for long‑term stable operation.
    2. Manual Override Knob: Physical switch knob for manual power switching during maintenance or power‑system inspection.
    3. Status Indicator Lights: Dual LED indicator lights show real‑time working status of main power and standby power sources.
    Dual Power WiFi ATS Details

    Dual Power WiFi ATS Dimensions(Unit: mm)

    • 2-Pole Wiring

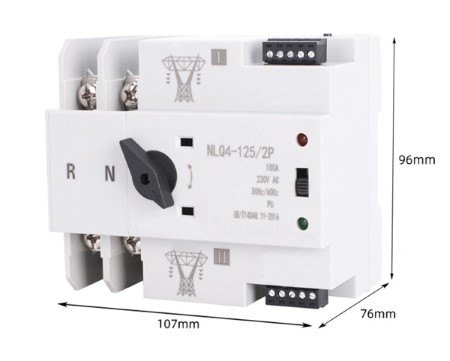

    2P Dual Power WiFi ATS Dimensions

    • 3-Pole Wiring

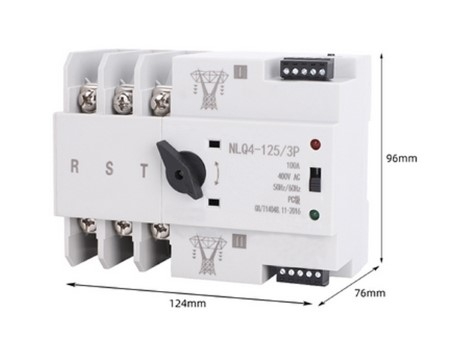

    3P Dual Power WiFi ATS Dimensions

    • 4-Pole Wiring

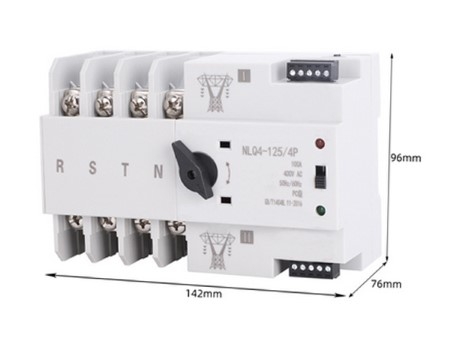

    4P Dual Power WiFi ATS Dimensions

    Dual Power WiFi ATS Wiring Diagram

    • 2-Pole Wiring

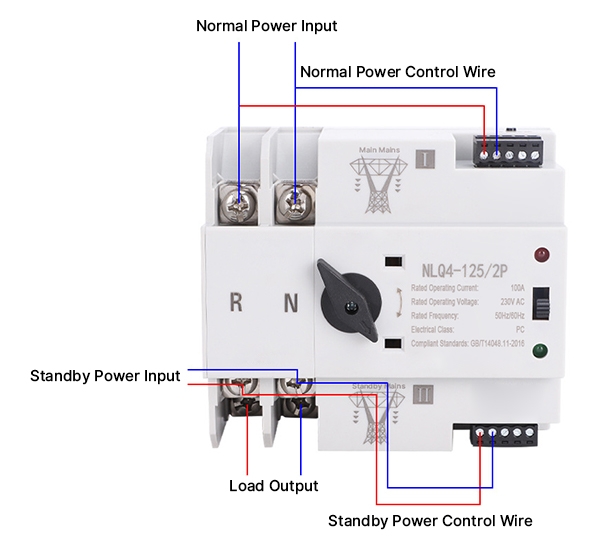

    2P Dual Power WiFi ATS Wiring Diagram

    • 3-Pole Wiring

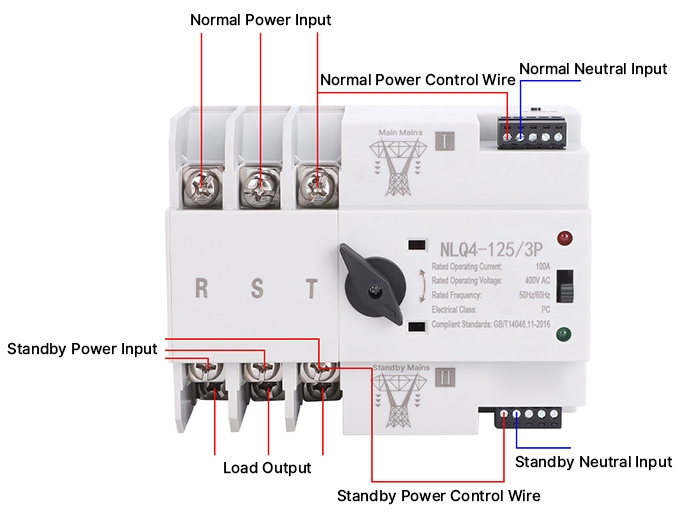

    3P Dual Power WiFi ATS Wiring Diagram

    • 4-Pole Wiring

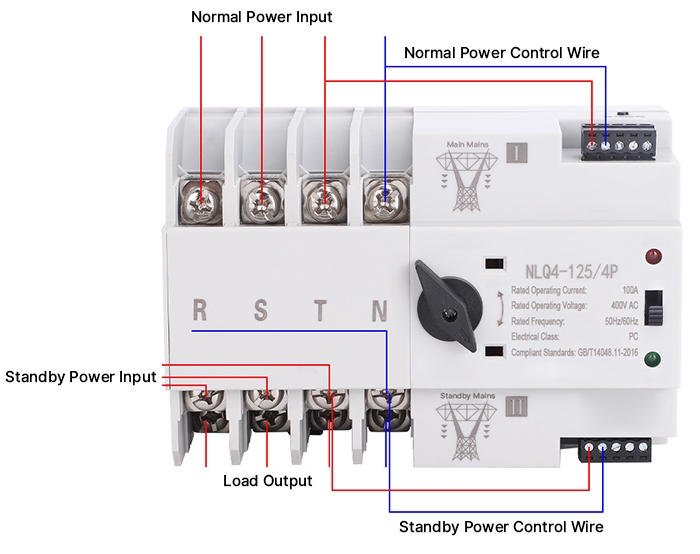

    4P Dual Power WiFi ATS Wiring Diagram

    Specs
    Operating Voltage 220V (2P)/380V (3/4P)
    Operating Current 20A~100A
    Operating Frequency 50Hz/60Hz
    Number of Poles 2P/3P/4P
    Transfer Time Millisecond Level
    Operation Mode WIFI Control / Automatic / Manual
    Utilization Category PC Class
    Application
    ATS for Home

    Home

    ATS for Commercial Office Building

    Commercial Office Building

    ATS for School

    School

    ATS for Hospital

    Hospital

    FAQ

    Q1: Can this ATS start a diesel generator automatically when mains power fails?

    This automatic transfer switch only completes power switching between two incoming power sources, it does not provide dry‑contact signal output to start or stop the generator, you can use a generator as the backup power source but need a separate generator automatic transfer switch to handle start‑stop functions.

    Q2: What is the switching time of this PC‑class ATS?

    This PC‑class automatic transfer switch operates at millisecond‑level transfer time, it supports WIFI control, automatic and manual operation modes, and fits for 220V/380V systems with available poles of 2P,3P and 4P.
